Refraction Filter

This page provides information about the Refraction Filer render element in V-Ray for SketchUp.

Overview

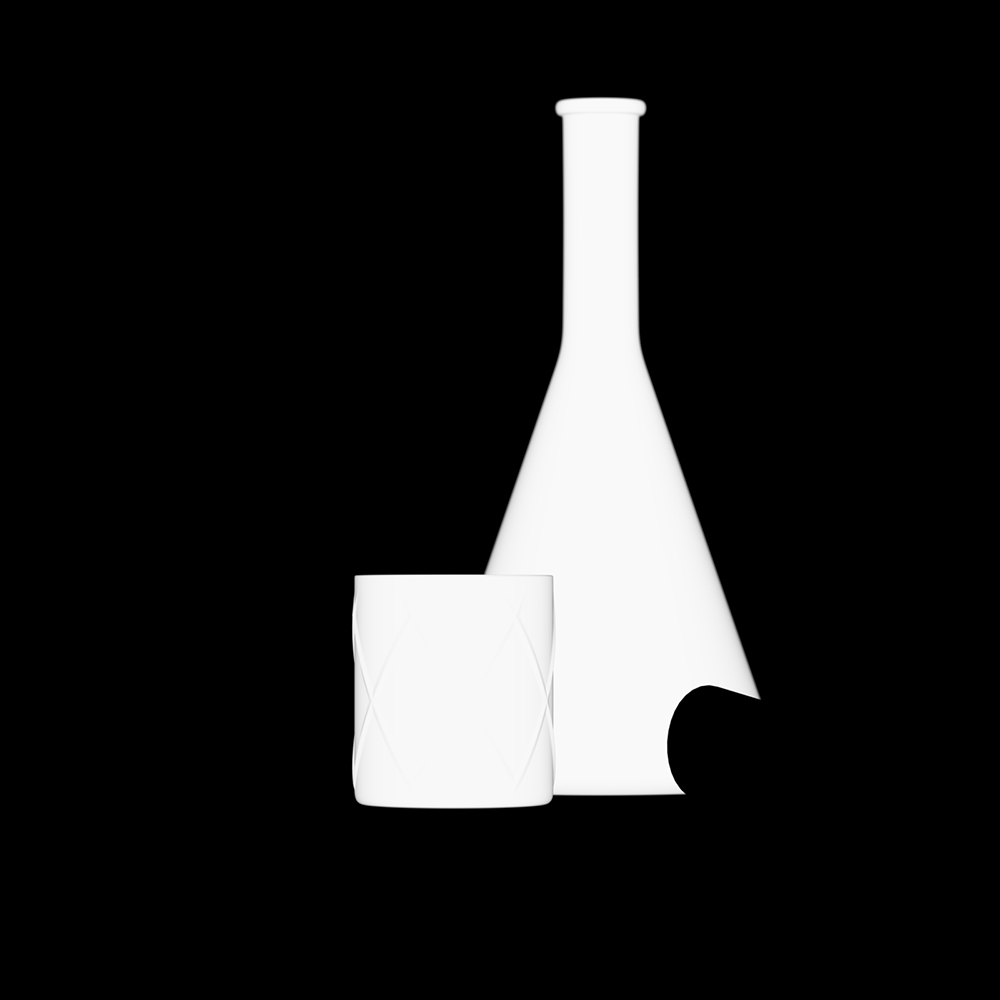

Stores refraction color information based on the refraction color property of a material.

UI Paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Refraction Filer
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Refraction Filer

Parameters

Denoise – Specifies whether to denoise this render element.

Common Uses

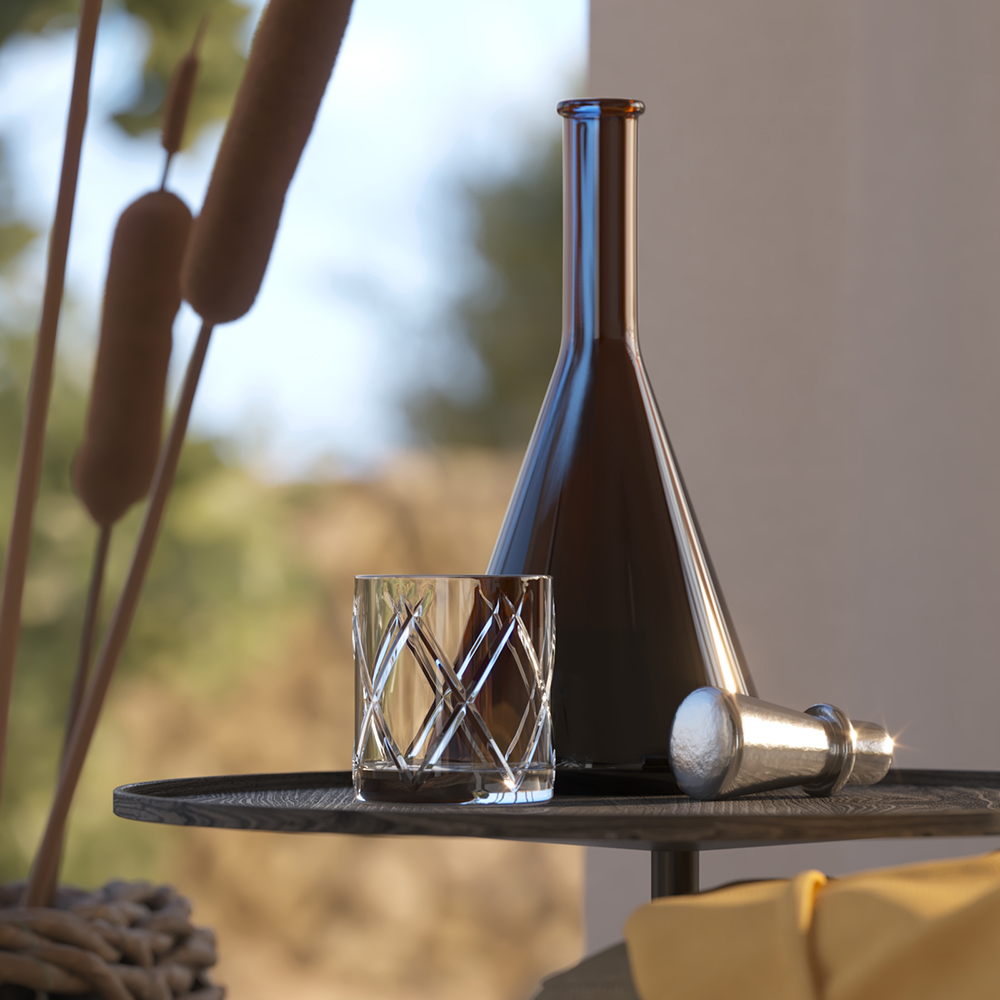

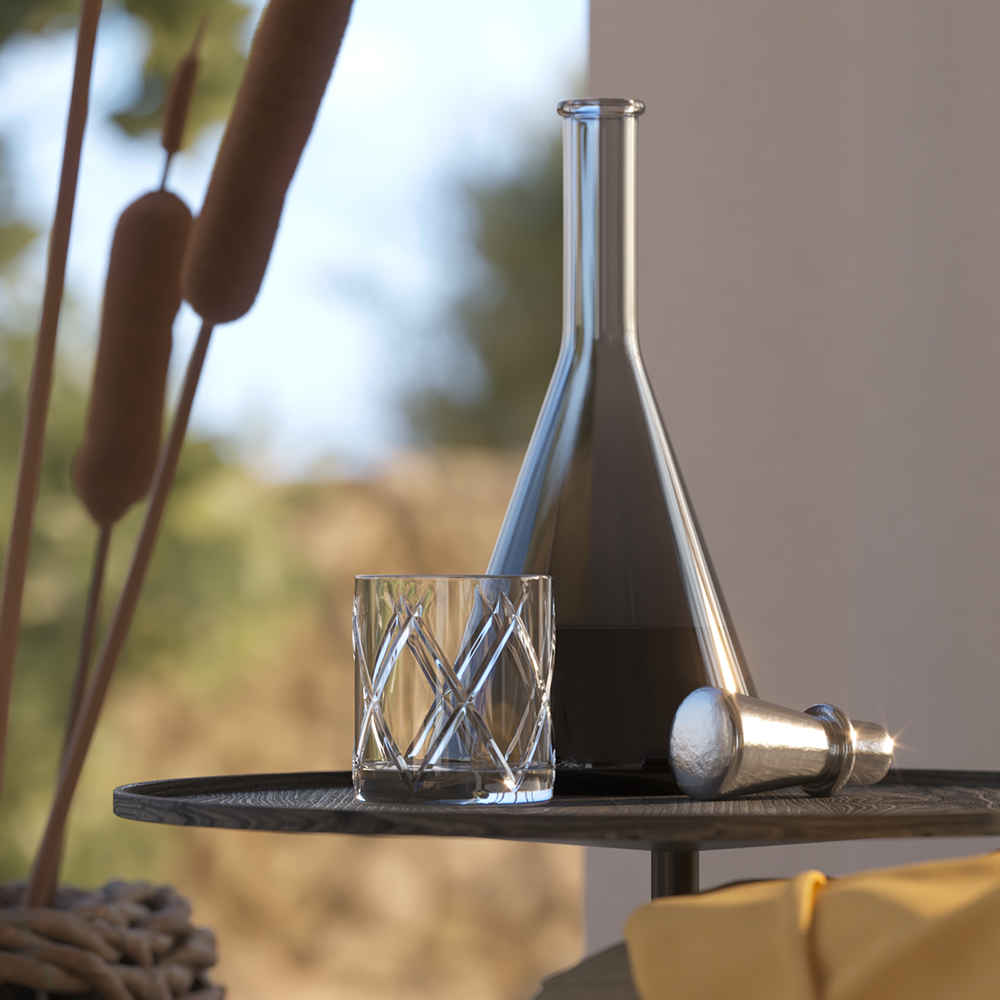

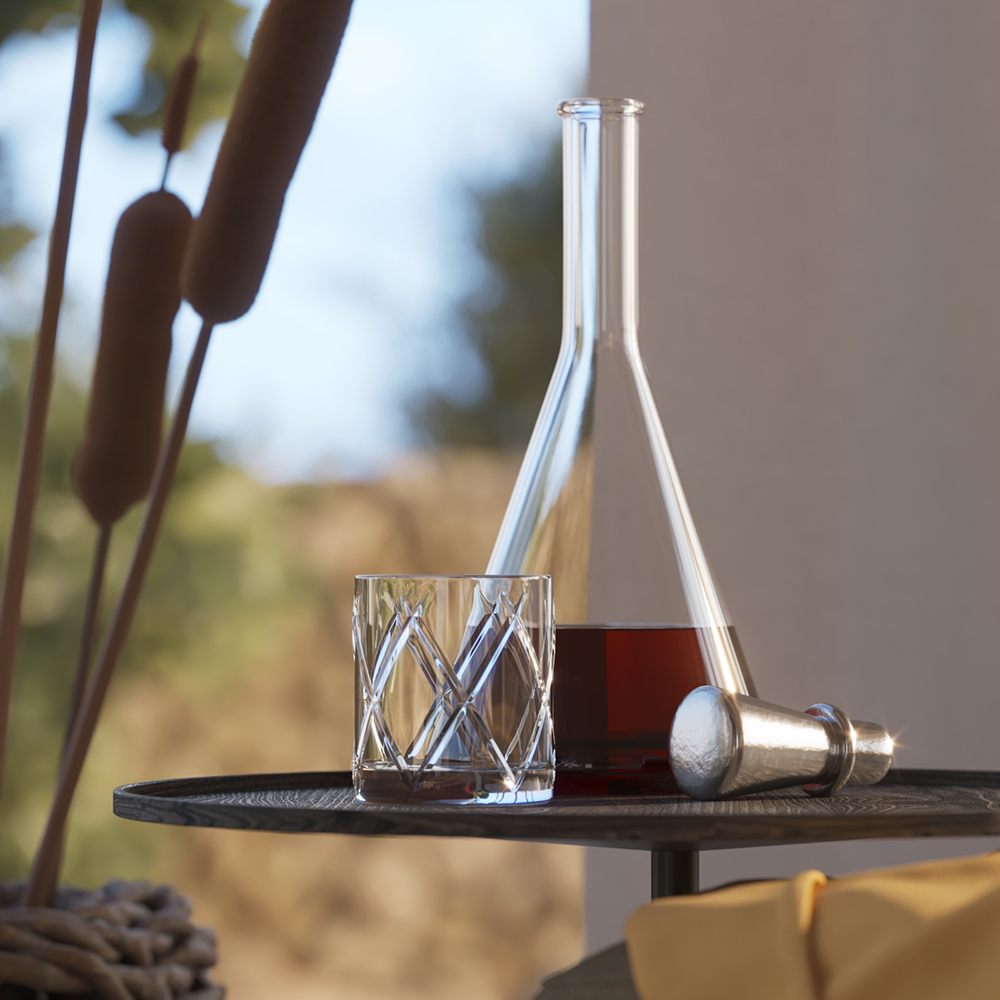

The Refraction Filter Render Element is useful for changing the appearance of refractive elements, after rendering, in a compositing or image editing application. In the example, the refractions are brightened and tinted using the Refraction Filter RE. See the render before and after compositing.

Compositing

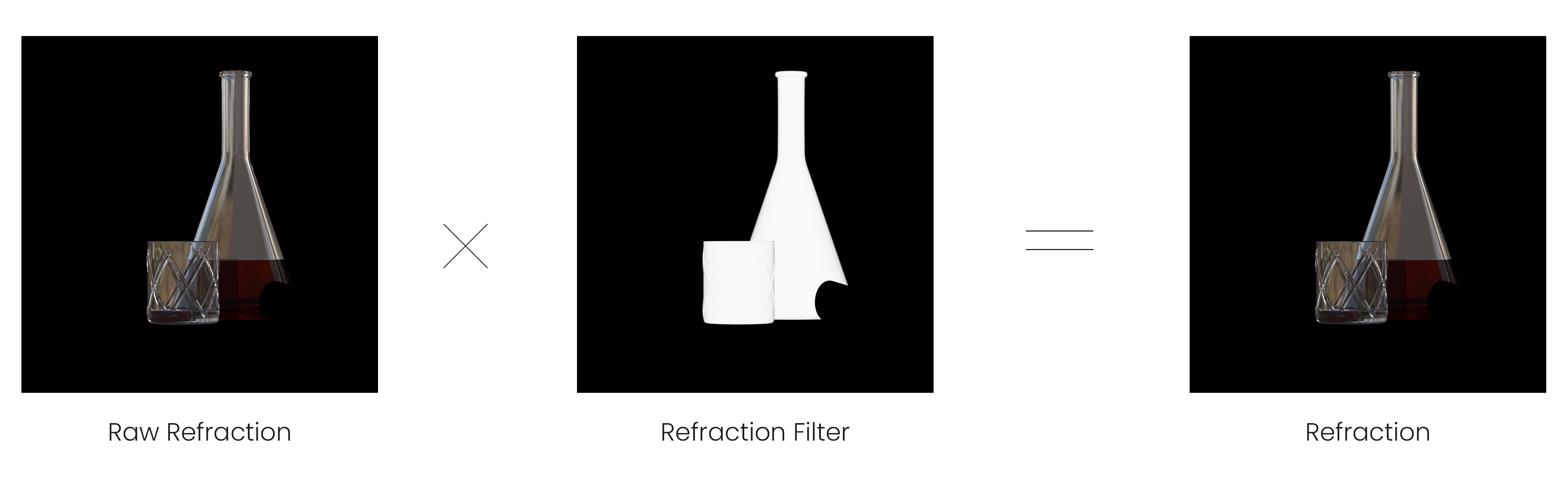

Raw Refraction x Refraction Filter = Refraction
