Render ID

This page provides information about the Render ID render element in V-Ray for SketchUp.

Overview

Creates selection masks with automatic color assignment for each scene object.

UI Paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Render ID
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Render ID

Common uses

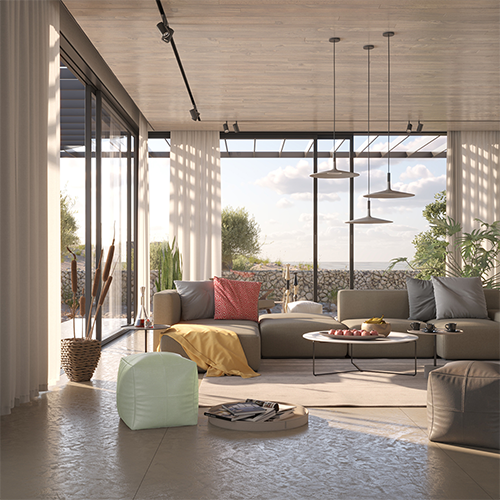

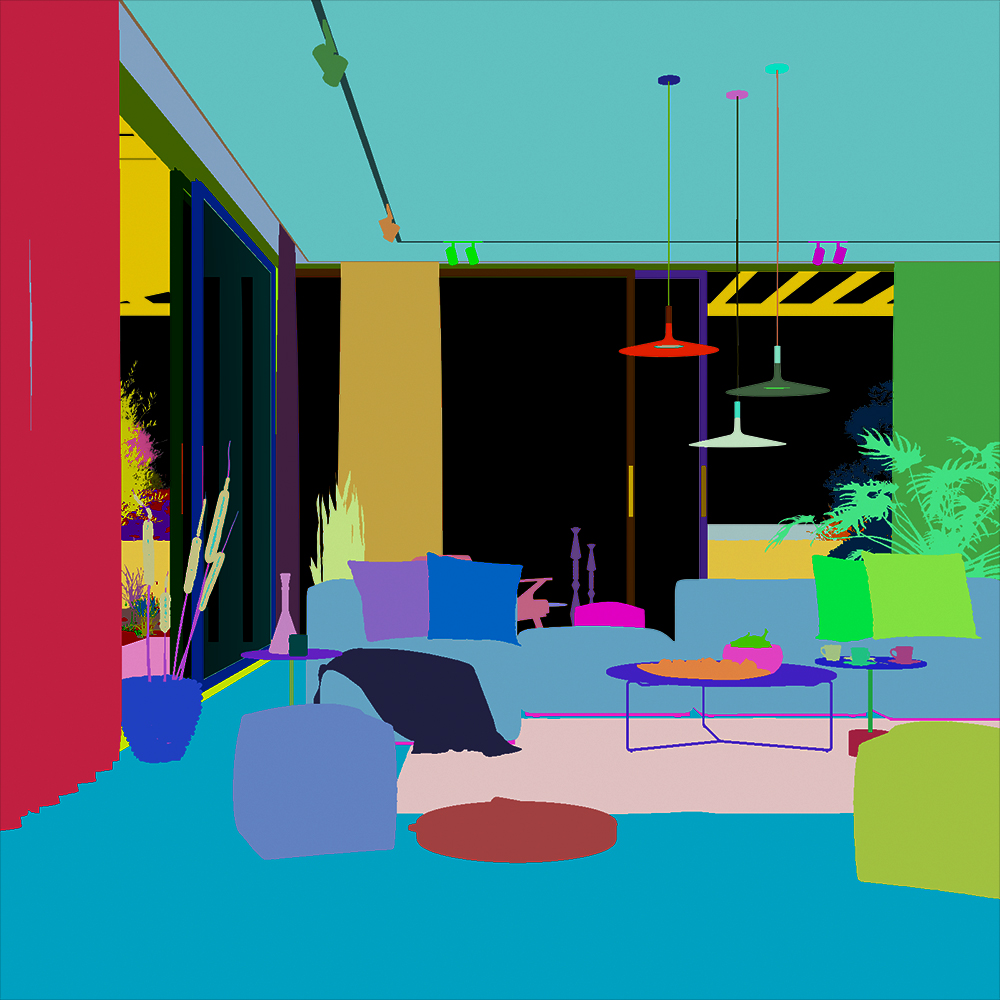

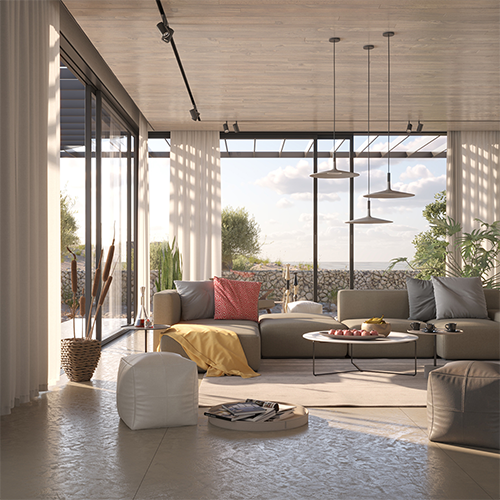

The Render ID Render Element is useful for isolating geometry in a scene. This means that items can be isolated by use of a matte created from the solid colors within the Render ID pass. Exact RGB values for any object in the scene can be looked up, if the XML report is saved. In the example, the leather ottoman is selected using the Render ID RE, and it is color corrected. See the render before and after compositing.
