V-Ray for SketchUp, Render Elements

Shadows

Use the Shadows render element in V-Ray for SketchUp to adjust shadows when compositing.

On this page
  1. Overview
  2. UI paths
  3. Parameters
  4. Common uses
  5. Compositing

Use the Shadows render element in V-Ray for SketchUp to lighten, darken or tint shadows when compositing.

Overview

This element is a colour image that works as a reverse mask for shadows. Use it to lighten, darken or tint shadows. Add this render element to the final composite to lighten shadows, or subtract it to darken them.

Shadows render element showing coloured shadow information on the lounge furniture, curtains and floor.

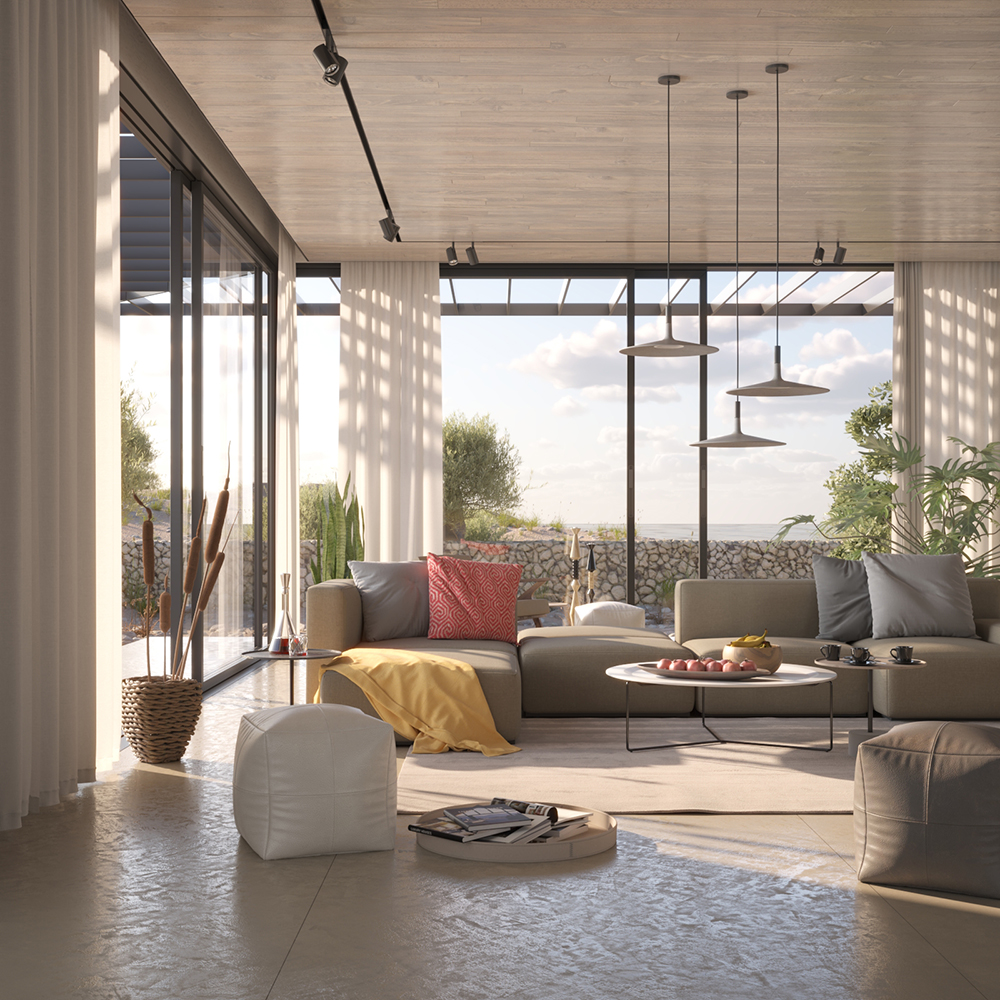

Beauty render of the lounge, showing sunlit furniture, floor shadows and the outdoor view.

UI paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Shadows
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Shadows

Parameters

Denoise controls whether this render element is denoised.

Parameters panel with the Denoise checkbox cleared for the Shadows render element.

Common uses

Use the Shadows render element to adjust shadowed areas in a compositing or image editing application. In this example, subtracting the Shadows render element from the Beauty element makes the render darker.

Original Beauty render of the lounge before subtracting the Shadows render element.
Darker lounge render after subtracting the Shadows render element from the Beauty element.

Compositing

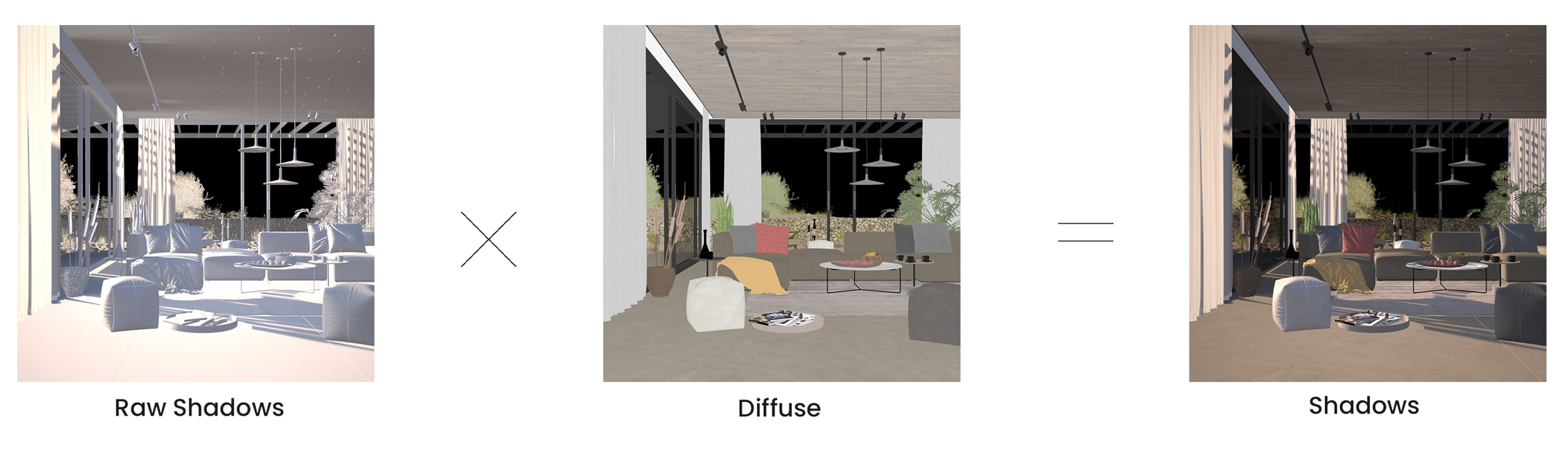

Raw Shadows x Diffuse = Shadows

Compositing example showing Raw Shadows multiplied by Diffuse to produce the Shadows render element.
Adapted from Chaos documentation: Shadows. © 2026 Chaos Software EOOD
