V-Ray for SketchUp, Render Elements

Specular

Use the Specular render element in V-Ray for SketchUp to adjust specular highlights during compositing.

On this page
  1. Overview
  2. UI paths
  3. Parameters
  4. Common uses
  5. Compositing

Use the Specular render element in V-Ray for SketchUp to adjust specular highlights during compositing.

Overview

This render element records specular highlights based on a material's reflection properties. Surfaces whose materials have no reflection values contain no information in this render element and appear black.

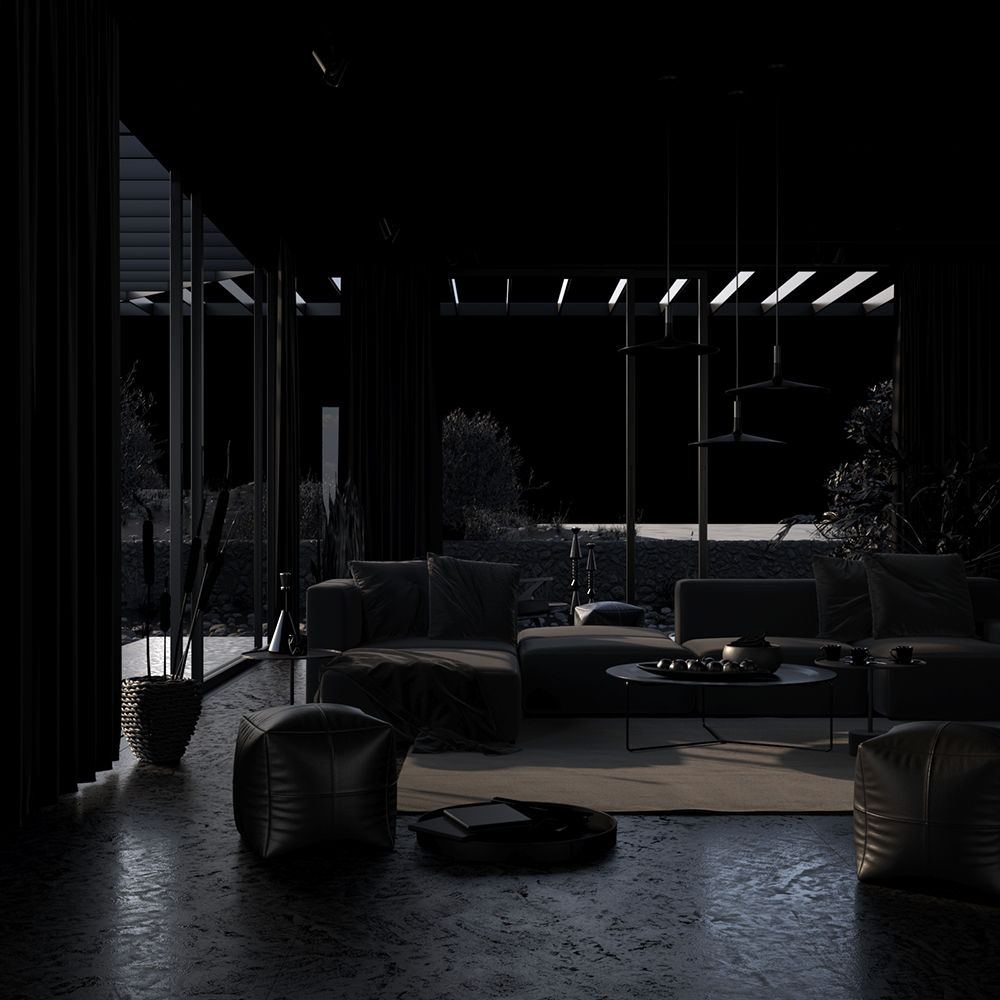

Specular render element showing surface highlights, with areas lacking reflections appearing black.

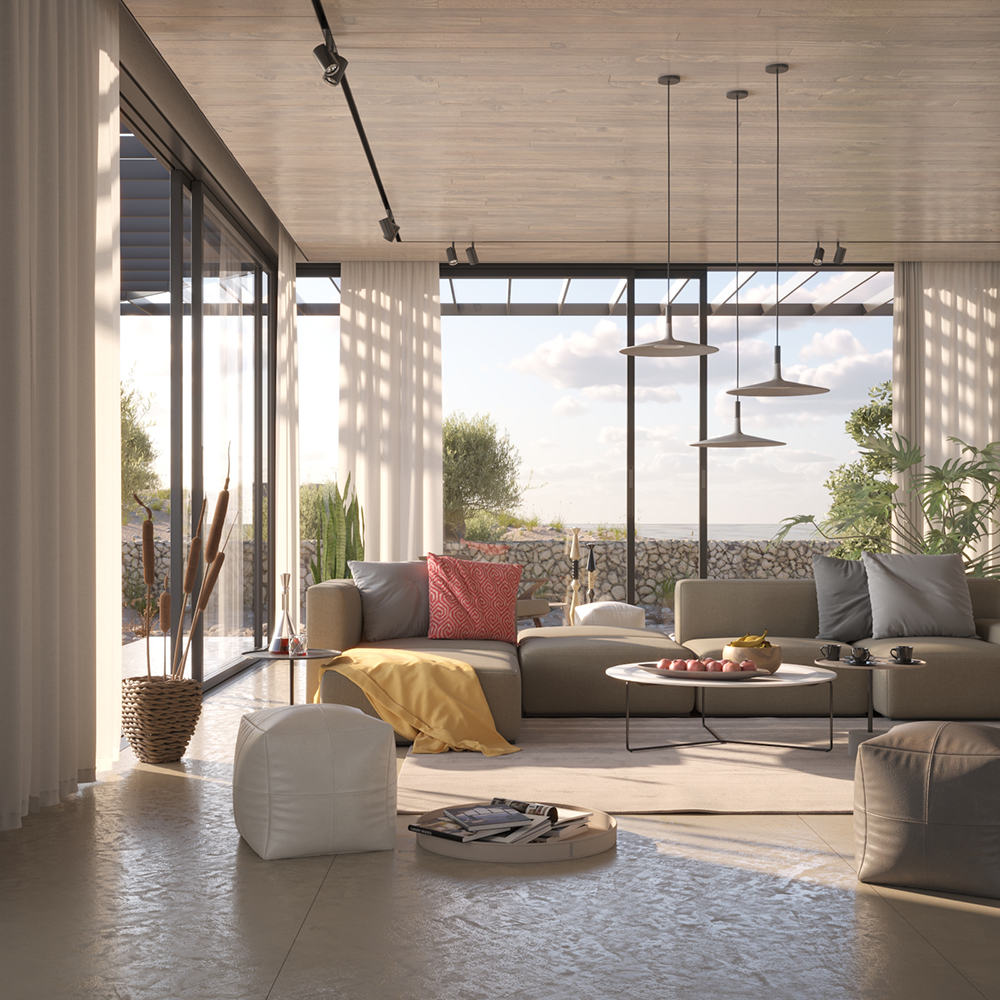

Living room beauty render showing warm daylight and specular reflections on the tiled floor.

UI paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Specular
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Specular

Parameters

Denoise controls whether this render element is denoised.

Parameters panel with the Denoise checkbox unticked.

Common uses

Use the Specular Render Element to change the final image's specular appearance during compositing. The example shows specular reflections brightened and tinted with a cooler colour. Compare the render before and after compositing.

Living room beauty render showing warm daylight and specular reflections on the tiled floor.

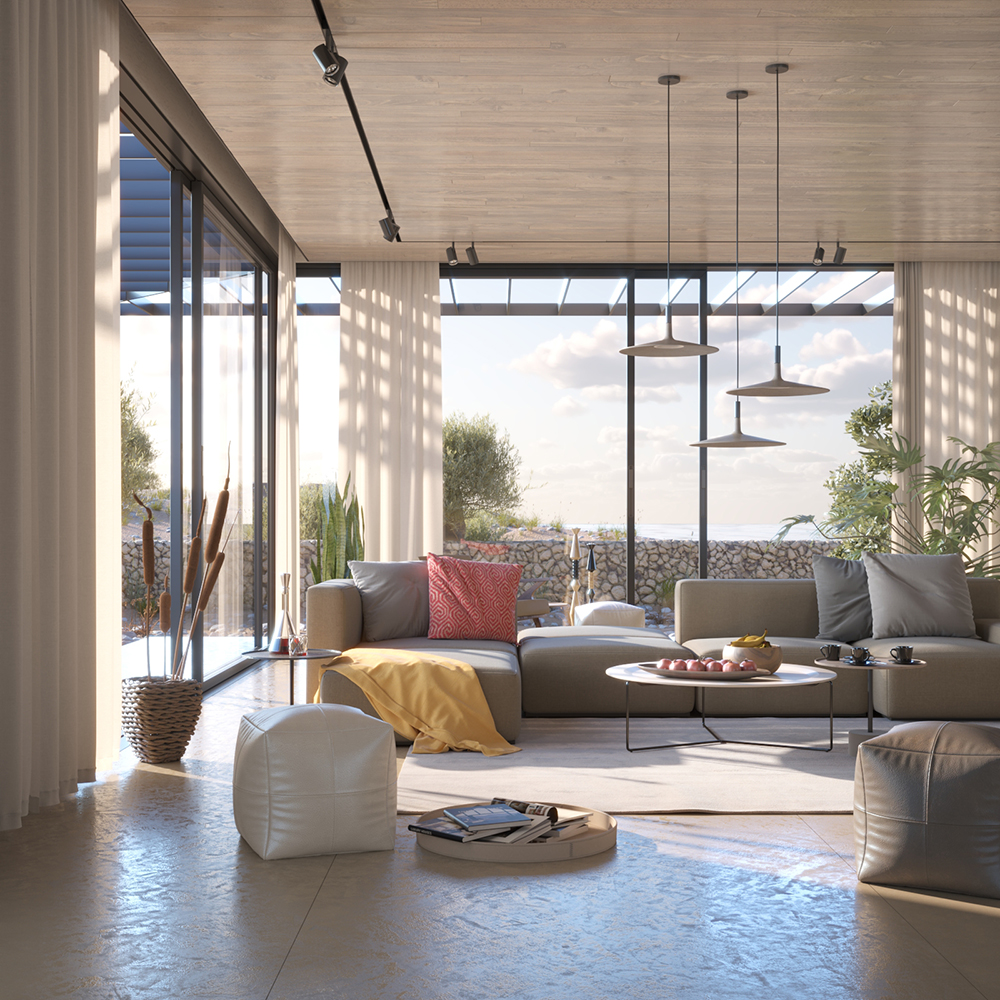

Living room render after compositing, with brighter specular reflections tinted a cooler colour.

Compositing

Add the Specular Render Element as part of the Beauty composite to create the final image.

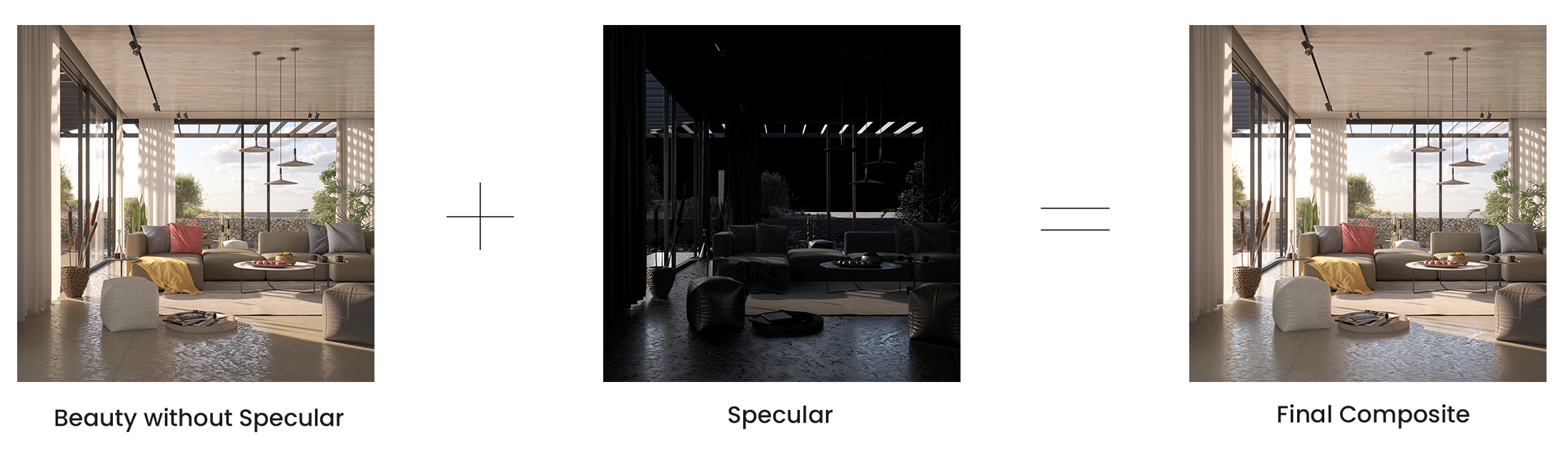

Compositing diagram showing Beauty without Specular plus Specular equals Final Composite.
Adapted from Chaos documentation: Specular. © 2026 Chaos Software EOOD
