Total Light

This page provides information about the Total Light render element in V-Ray for SketchUp.

Overview

Stores both direct and indirect lighting information including the diffuse material component. It is a result of adding the Lighting and Global Illumination render elements.

UI Paths

||V-Ray Asset Editor|| > Render Elements (right-click) > Total Light
||V-Ray Asset Editor|| > Create Asset (left-click) > Render Elements > Total Light

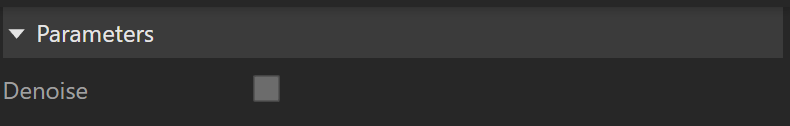

Parameters

Denoise – Specifies whether to denoise this render element.

Common Uses

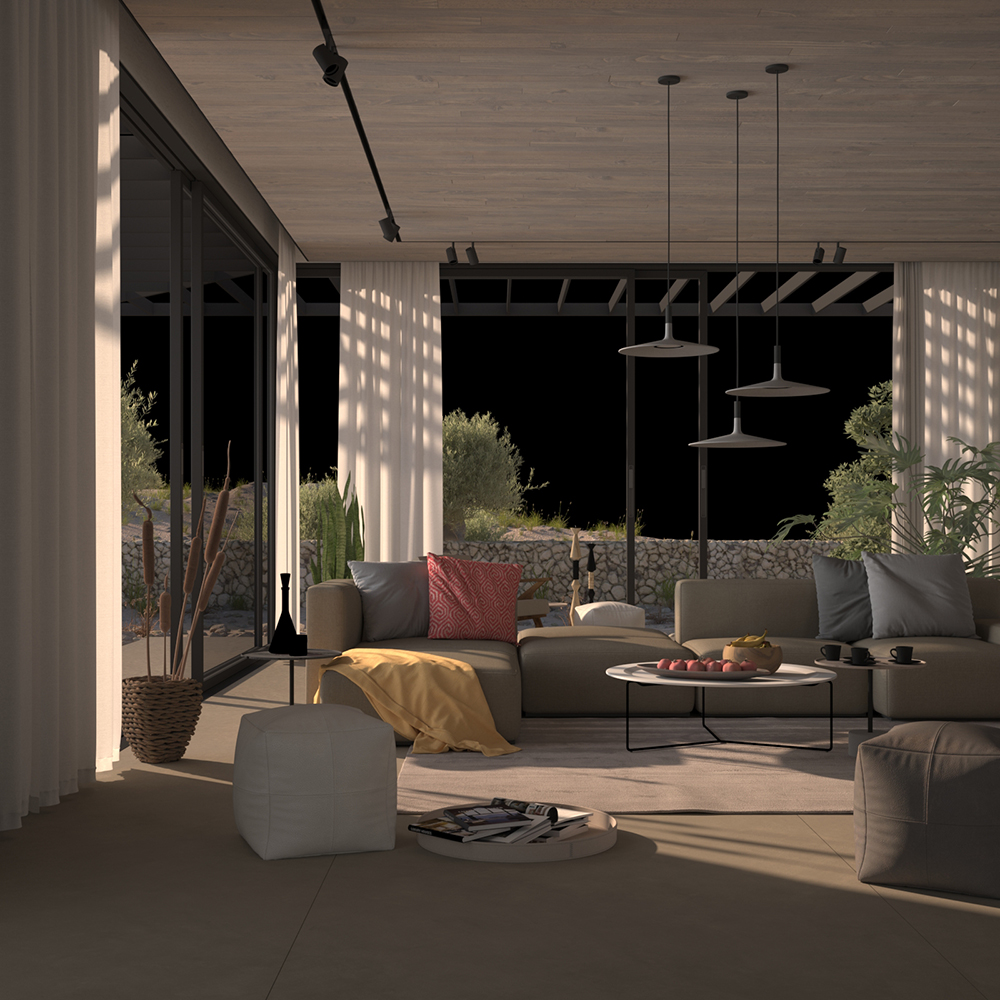

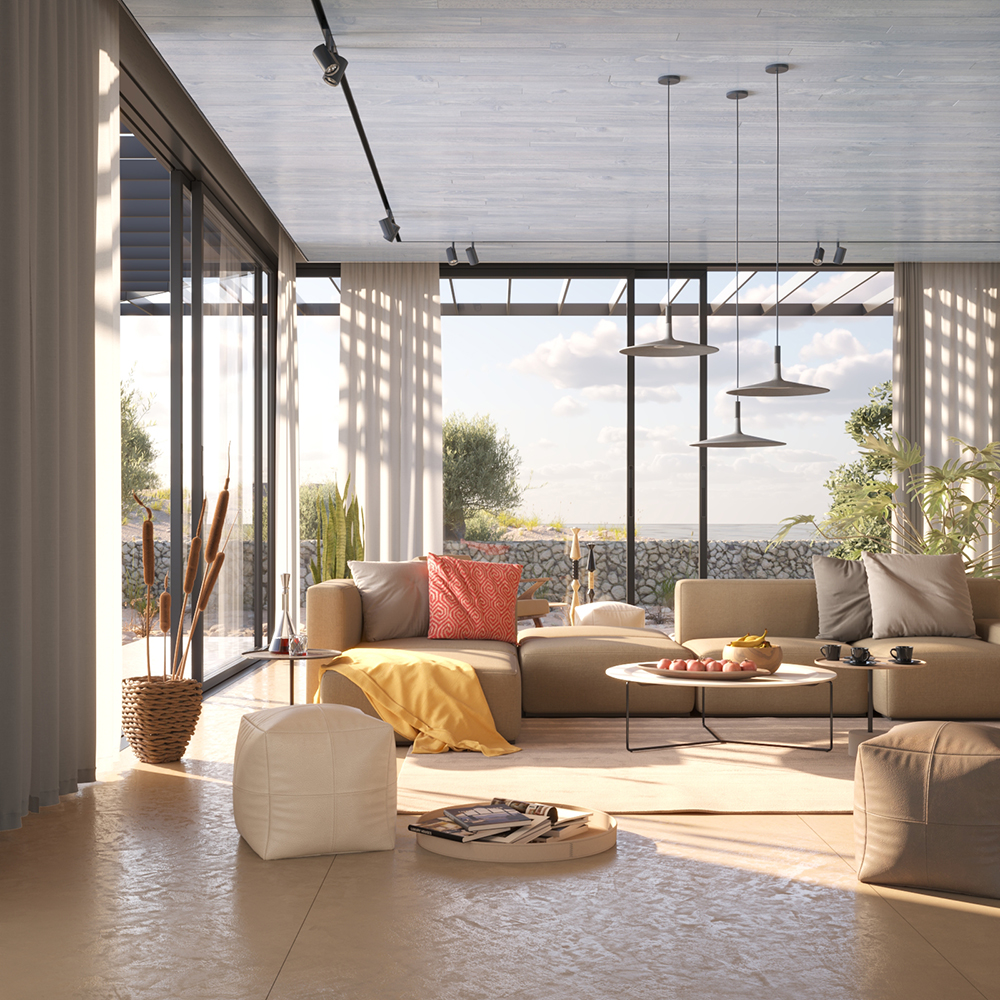

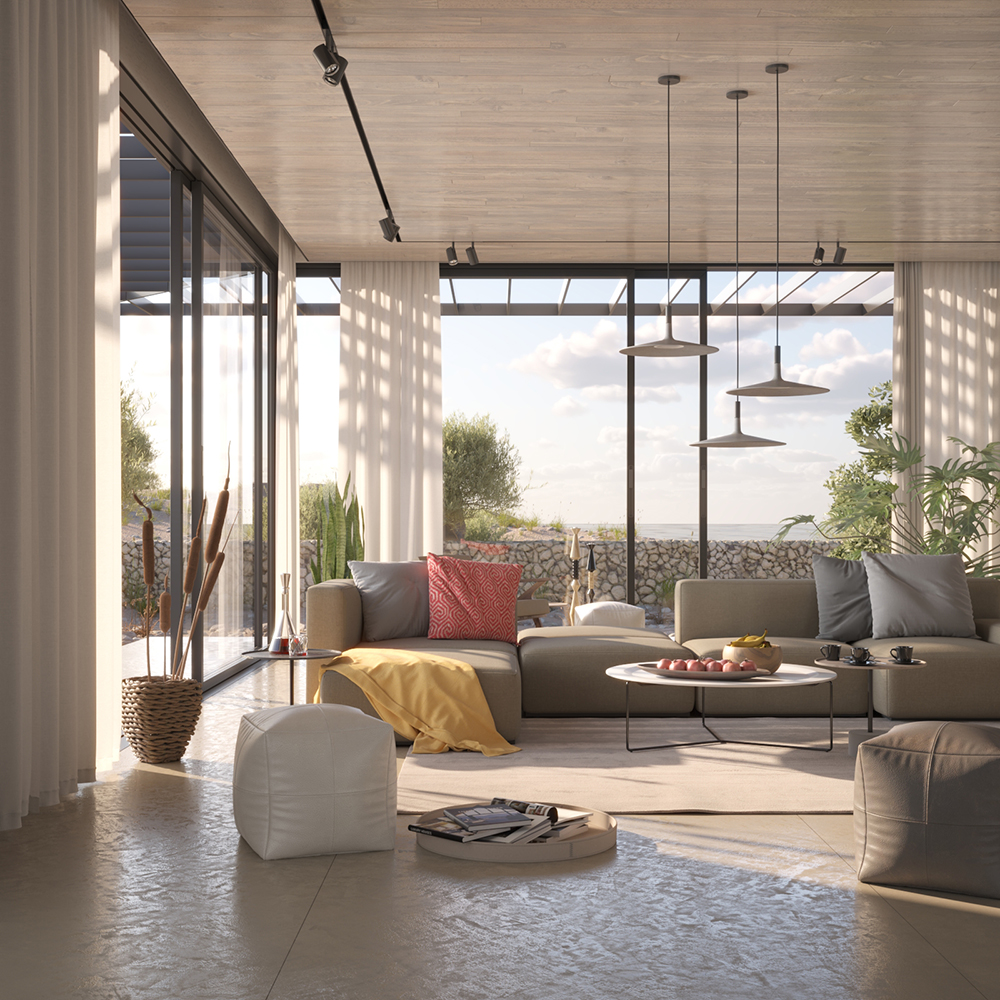

The Total Light Render Element is useful for brightening or dimming all lighting during compositing. In the example, the lights in the scene are brightened and tinted with a warm tone. See the render before and after compositing.

Compositing

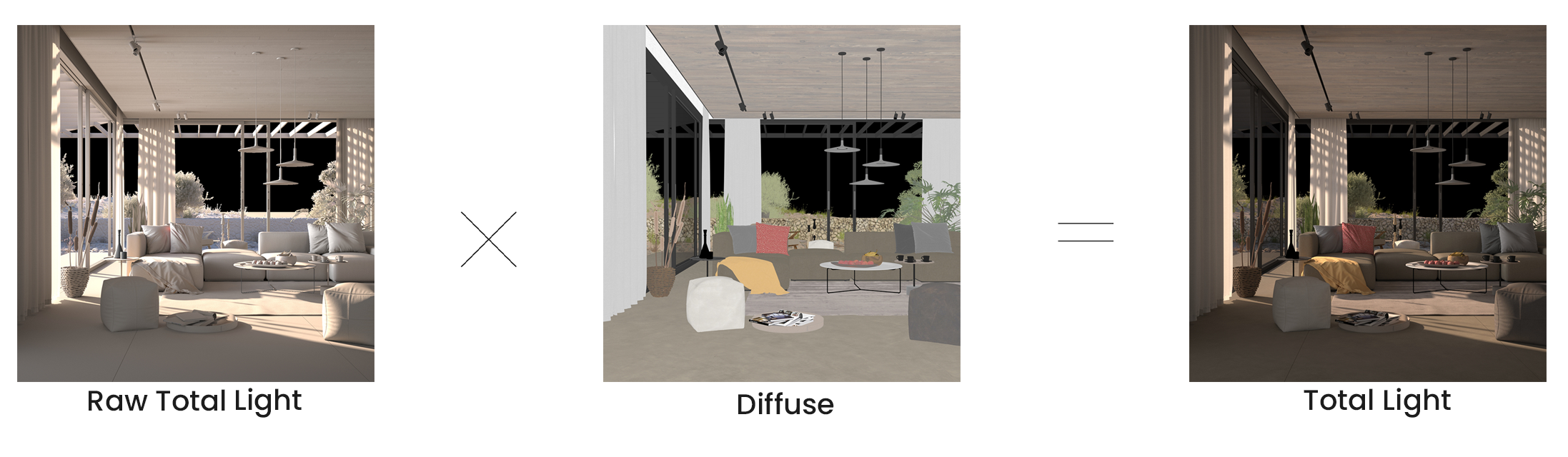

Raw Total Light x Diffuse = Total Light
