Compositing Examples with Render Passes

Render Passes can be used in various ways during post-processing. Below are two basic examples of compositing workflows with Render Passes, using Photoshop to explain the concepts.

Last updated 3 August 2026

Render Passes can be used in various ways during post-processing. Below are two basic examples of compositing workflows with Render Passes, using Photoshop to explain the concepts.

Reconstruct Beauty Image from Passes

Passes can be used to reconstruct the rendered still image, commonly called the “beauty pass” in compositing workflows. Adding together the Lighting, Global Illumination, Caustics, Reflection and Refraction Passes allow to achieve the beauty image.

In Photoshop, adding is done by setting each pass layer’s blending mode to “Linear Dodge (Add)”.

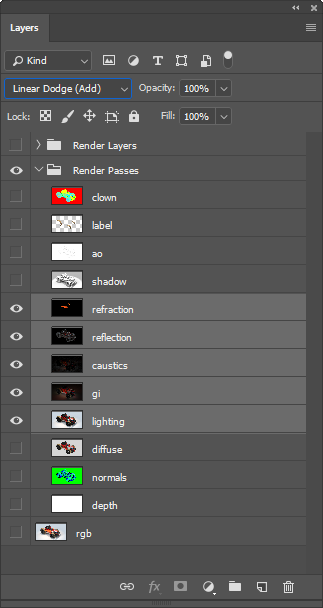

The pass layers with blending mode “Linear Dodge (Add)” in Photoshop
The pass layers with blending mode “Linear Dodge (Add)” in Photoshop

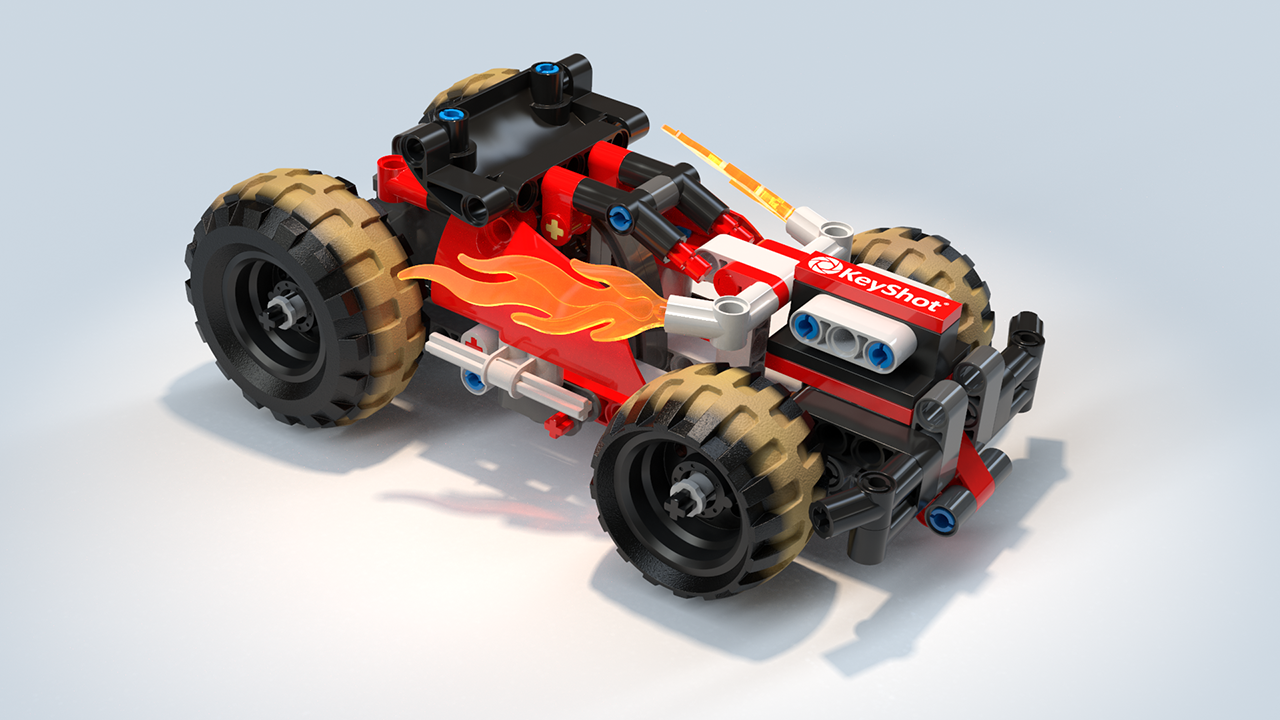

BeautyPass
On the left you see the rendered beauty pass for reference, on the right is the composited result.
On the left you see the rendered beauty pass for reference, on the right is the composited result.

Adjust Beauty Image with Passes

The same passes from the workflow above can also be used to strengthen or weaken their effect on the beauty image. In Photoshop, strengthening the effect of a pass is done by setting the pass layer’s blending mode to “Linear Dodge (Add)”. Weakening the effect is done by setting the blending mode to “Subtract”. In both cases, the beauty image should be the base layer, positioned below the passes.

The example below shows the effect of adding the Reflection pass to the beauty image.

BeautyPass

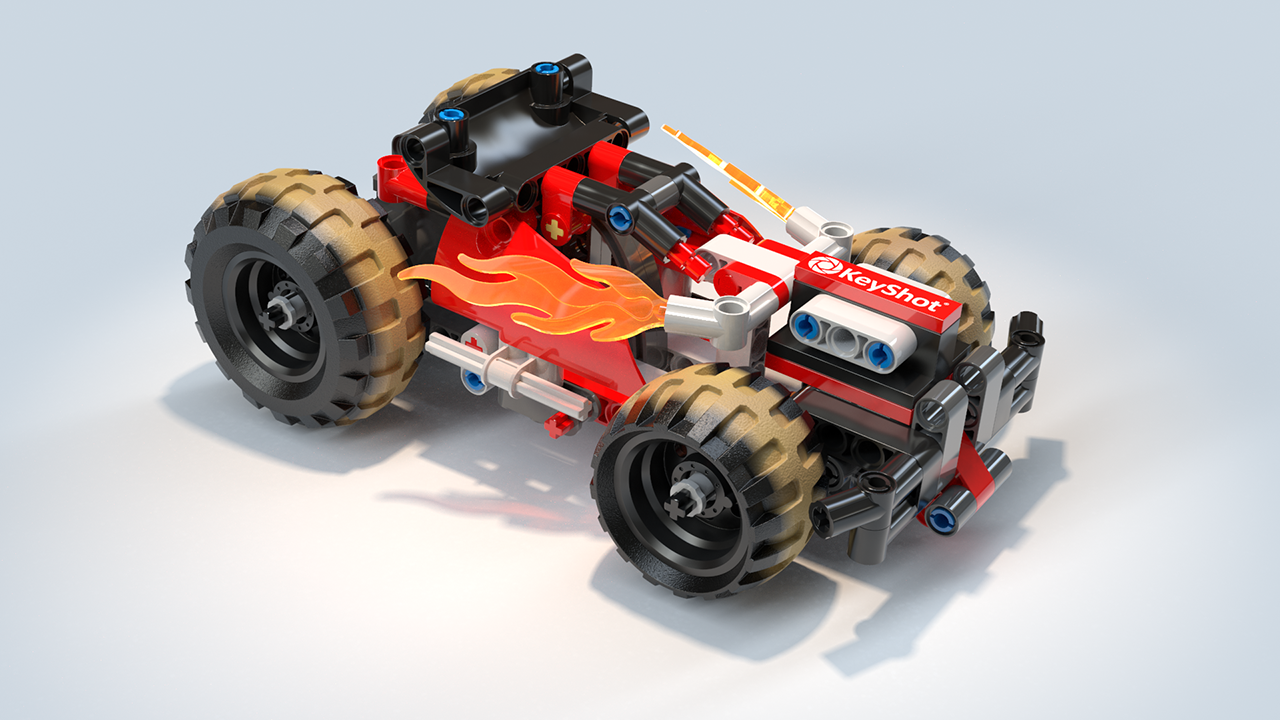

On the left you see the rendered image (beauty pass) on the right is composited result, of the beauty pass + reflection.
On the left you see the rendered image (beauty pass) on the right is composited result, of the beauty pass + reflection.

The example below shows the effect of subtracting the Global Illumination pass from the beauty image.

BeautyPass

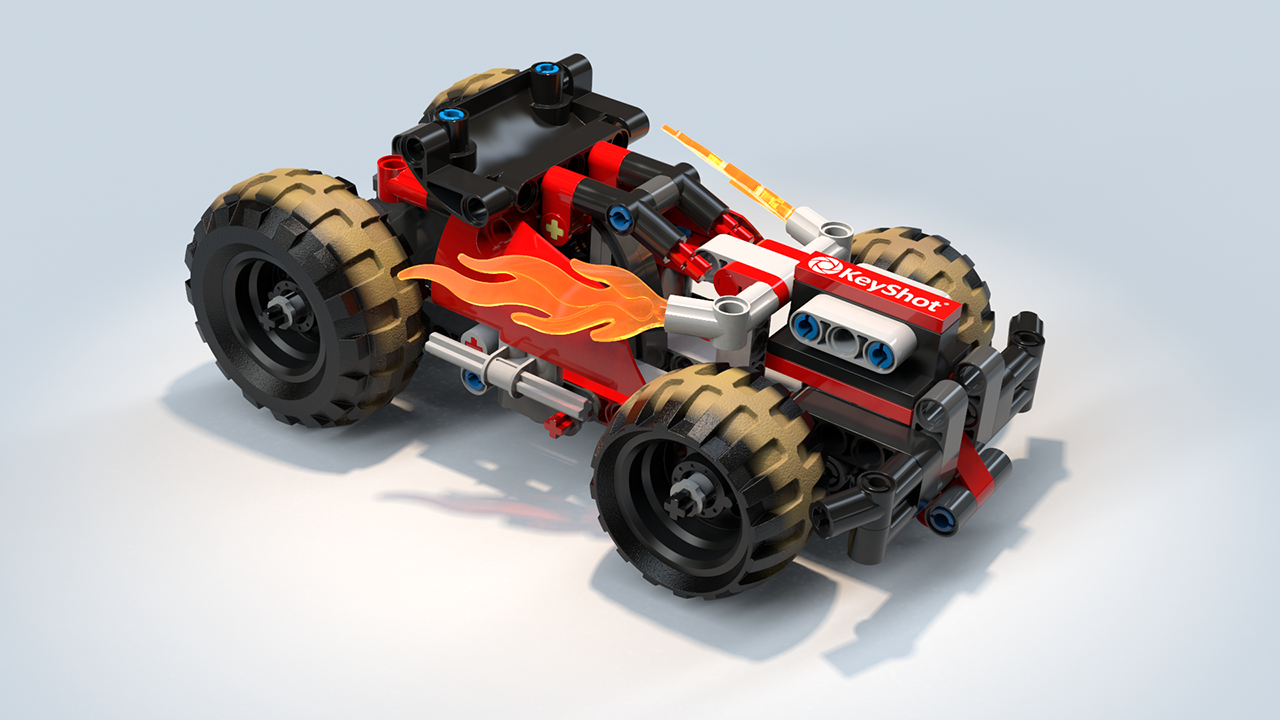

On the left you see the rendered image, on the right is the composited result of the beauty pass + global illumination.
On the left you see the rendered image, on the right is the composited result of the beauty pass + global illumination.
