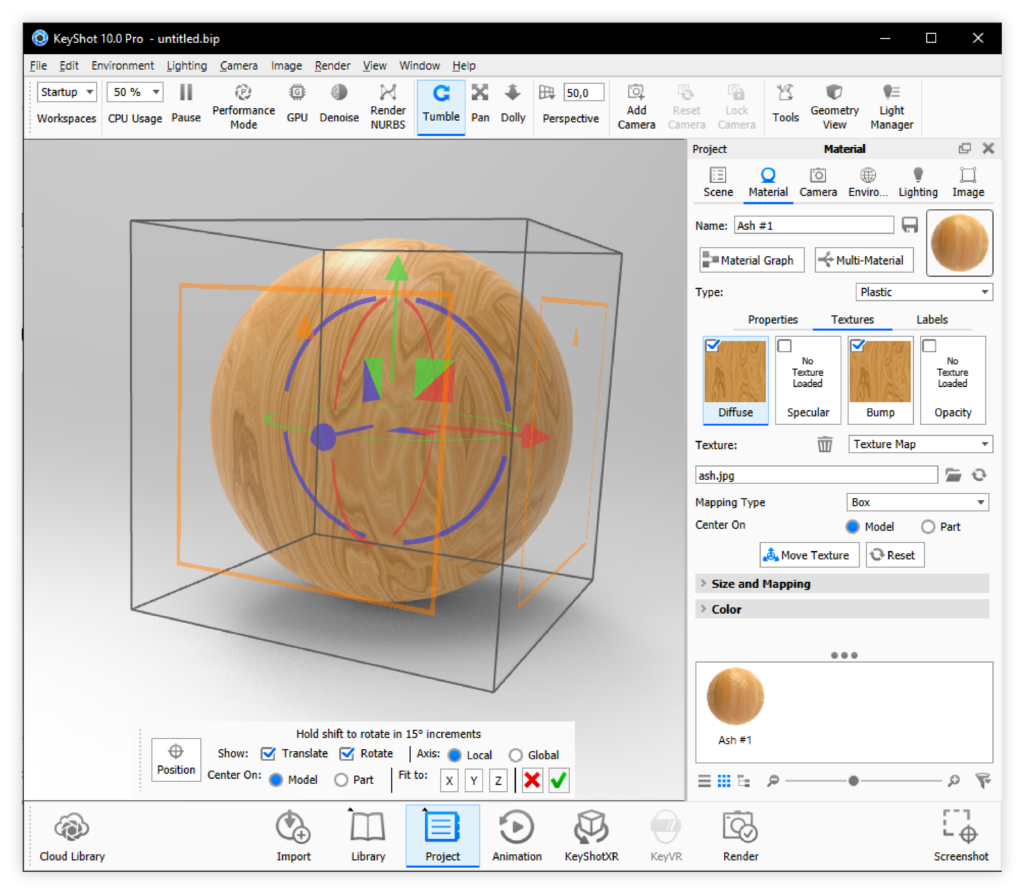

Use Move Texture in KeyShot to position textures on your model. Open it from the texture tab in the material editing menu when using Planar, Box, Cylindrical or Spherical mapping.
Position
Set where the centre of your texture image projects. In Position mode, click the model's surface to place the texture there.
Translate
Move the texture mapping along the XYZ axes using the arrow handles. Click any of the three axis arrows to move the mapping. The red, green and blue arrows correspond to the X, Y and Z axes.
Rotate
Use the circle handles to rotate and align the texture mapping with your model. Hold SHIFT to constrain rotation to 15 degree increments.
Axis
Choose whether translation and rotation use the global or local axis.
Fit
Fit the texture to the geometry along the X, Y and Z axes.
Center on
- Model positions the texture relative to the model.
- Part positions the texture relative to the part.
Cancel or Confirm Changes
After adjusting the texture mapping, click the green check mark to confirm your changes and close the mapping tool. Click the red X to cancel your changes and close the mapping tool.

Size and mapping
Use Size and Mapping to scale the texture and adjust its orientation. The settings vary slightly with the Texture Types and Mapping Types, but the overall options are the same.

Scale Mode
Width and Height |
Size
When the scale mode is DPI, Size replaces Width and Height.
Lock Aspect keeps the texture's proportions as you scale it.
Refresh restores the texture's original aspect ratio.
Shift U

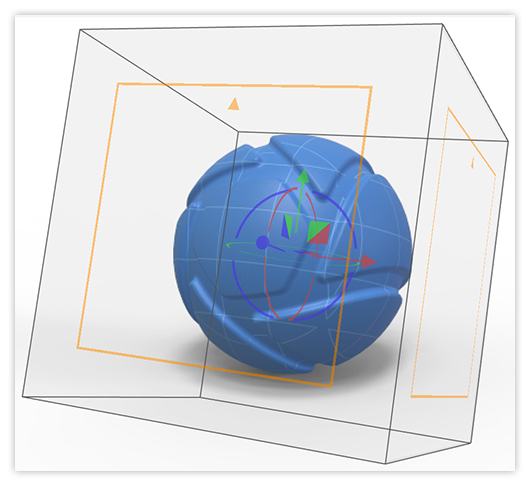

Move the texture in the U direction. In the example, the orange box shows the UV plane and the small arrow shows the V direction. Shift U moves the texture sideways in this example.
Shift V
Move the texture in the V direction. In the example, Shift V moves the texture up or down.
Angle UV
Rotate the map's UV plane, shown as orange squares in the example on the right.
Angle
Rotate the entire map around the local Y axis. This works the same way as rotation in Move Texture. In the example, it rotates the entire box around the green axis.
Expand the setting for more precise control.
Axis Tilt
Tilt the local axes around the global X axis.
Axis Azimuth
Rotate the map around the global Y axis. If the tilt is 0, adjusting the azimuth has the same effect as adjusting the overall angle.
Center X
Move the centre of the map along the global X axis.
Center Y
Move the centre of the map along the global Y axis.
Center Z
Move the centre of the map along the global Z axis.
Flip Horizontal mirrors the texture across the local Y axis.
Flip Vertical mirrors the texture across the local X axis.
Two Sided applies only to Planar and Box Mapping. Its behaviour differs slightly between the two.
- Planar: When enabled, the texture appears on both sides of the model. The back side shows a mirrored version.
- Box: When enabled, the texture is mirrored on the back faces of the box. When disabled, the texture is the same on all faces.
Repeat Horizontal tiles the texture horizontally when enabled.
Repeat Vertical tiles the texture vertically when enabled.
Sync scales, moves and adjusts textures together on this material node when sync is enabled for those textures.
Lock Camera Map locks the camera-mapped texture in place when enabled.
