Orthographic

An Orthographic lens uses parallel projection to view the scene: all lines parallel to each other appear parallel regardless of camera distance or position. An orthographic lens is most commonly found in CAD modelers and is not affected by perspective distortion, foreshortening, or parallax. This means that relative...

Last updated 3 August 2026

An Orthographic lens uses parallel projection to view the scene: all lines parallel to each other appear parallel regardless of camera distance or position. An orthographic lens is most commonly found in CAD modelers and is not affected by perspective distortion, foreshortening, or parallax. This means that relative distance in the realtime view is always accurate for any parallel or perpendicular lines.

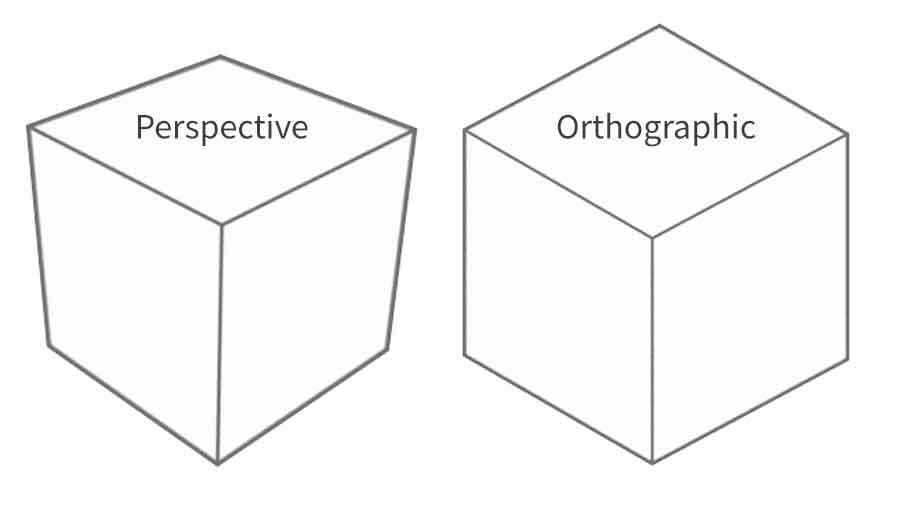

Perspective orthographic ill
