V-Ray for SketchUp, settings

Environment

Set the background and environment overrides in the V-Ray Asset Editor.

On this page
  1. Overview
  2. UI path
  3. Parameters

Use the Environment rollout in the V-Ray Asset Editor to set the background and control GI, reflections and refractions.

Overview

The Environment section in V-Ray render parameters lets you set a colour or texture map for GI and reflection/refraction calculations. If you leave these unset, V-Ray uses the background colour and map from the SketchUp Environment dialog.

For volumetric environment effects, see Volumetric Environment.

UI path

||V-Ray Asset Editor|| > Settings > Environment

Parameters

Background sets the colour or texture map visible in the background and used for GI and reflection/refraction calculations. Press the checkerboard button to select a texture. The texture overrides the colour while the texture checkbox is enabled.

GI (skylight) sets a colour or texture map to override the Environment GI rays. Changing the GI environment has an effect similar to a dome light. Global Illumination (GI) must be enabled.

Reflection sets a colour or texture map to override the Environment reflection rays. You can also override the reflection environment for each material (see Generic) or each map. These controls affect both reflections and refractions while the Refraction override is disabled. When you enable the Refraction override, they affect only reflections.

Refraction sets a colour or texture map to override the Environment refraction rays. V-Ray ignores this colour if an environment texture is set.

Secondary Matte sets a colour or texture map to override the Environment rays that affect Matte objects.

The GI environment overrides above share these controls:

On enables or disables the selected GI environment override. This control is not available for Background.

Texture sets a colour or texture for the selected override. Texture Enable must be enabled for it to affect the scene.

Texture Enable enables or disables the selected GI texture.

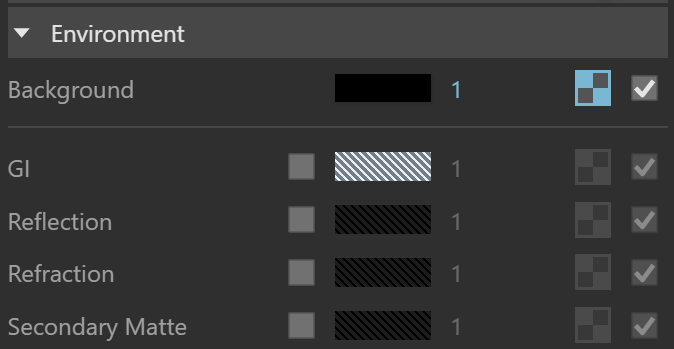

Environment panel showing Background, GI, Reflection, Refraction and Secondary Matte map slots.
Adapted from Chaos documentation: Environment. © 2026 Chaos Software EOOD
