Use KeyShot Render Queue to work with Cloud Rendering, your Network Rendering manager and workers, and to view and manage queued jobs.
When your computer is connected to a Manager, the Render Queue icon appears in the Task menu (Windows) or the Menu bar (macOS).
Main menu
The Main menu has the following options.
File
- Connection Settings Your computer connects through auto-detect by default. You can also choose a manager in Connection settings.
- Hide Hides the Render Queue. To show it again, select the Render Queue icon in the Task menu (Windows) or the Menu bar (macOS).
- Quit Closes the Render Queue. The manager and worker services keep running.
Edit
- Download Downloads a job.
- Move up/down Changes the order of queued jobs.
- Delete Deletes the selected jobs.
Help
- About Shows version information.
- License Information Shows licence information from the manager you are connected to.
- Manual Opens this manual.
- Check for updates Checks for updates to your Network Rendering installation.
- Auto-update Keeps the installation up to date.
- Log Debug Mode You can turn on Log Debug Mode when logged in as an admin. This raises the log level to Trace for the manager and connected workers. The level stays raised until the manager restarts or an admin turns off Log Debug Mode. While the mode is active, all Render Queues show a message at the top of the window. General performance may decrease.

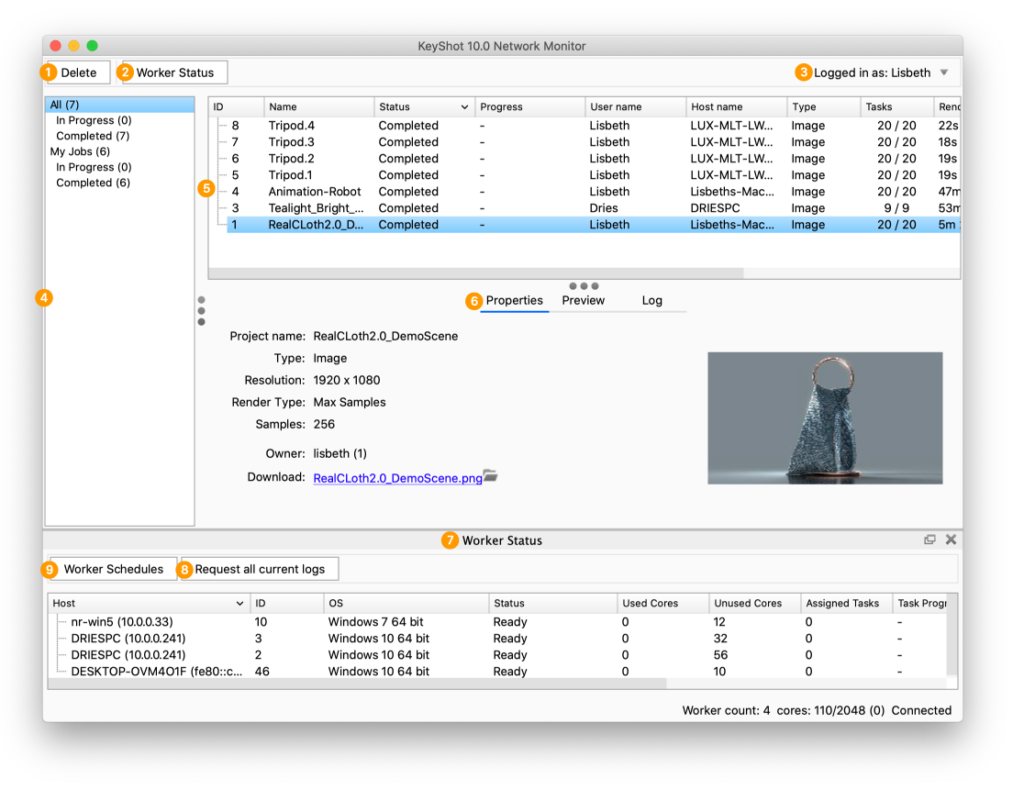

Render Queue window

- Delete deletes your render jobs. Administrators can delete any job. See Set up Users for details about user privileges.
- Worker Status shows or hides the Worker Status panel (7).
- Login account shows the logged-in user's name. See Log In/Out for details.
- Jobs filter lets you select My Jobs or All in the sidebar. You can filter either view to show jobs that are In Progress or Completed.
- Render job queue lists all render jobs submitted to the network. See Jobs for details about managing jobs.
Clear the queue regularly for the best performance. Learn about clearing the queue. - Details shows information about the selected job.
- Properties shows the render job name, render type and owner. It also shows a small thumbnail of the current or completed render.
- Preview shows image rendering progress.
- Log lists all events for the job.
- Worker Status shows connected workers, the available and allowed cores for each worker, and assigned regions. The possible statuses are listed below.
- Ready The worker is connected and ready to render.
- Updating The worker is updating its software and cannot render.
- Receiving The worker is receiving job data for the rendering task.
- Rendering The worker is rendering.
- Sending Results The worker is sending results back to the manager.
- Failed If the worker fails three times, it becomes inactive until an admin investigates.
- Worker Schedules shows or hides worker schedules. These schedules determine when a worker is active or inactive.
See Worker Schedules for details. - Request all current logs downloads a ZIP file with logs for all connected workers. You can also right-click a worker to access that computer's logs. See Get Logs for details.
