Use the Edit menu in Enscape Envision to manage objects, control points, the viewport and preferences.

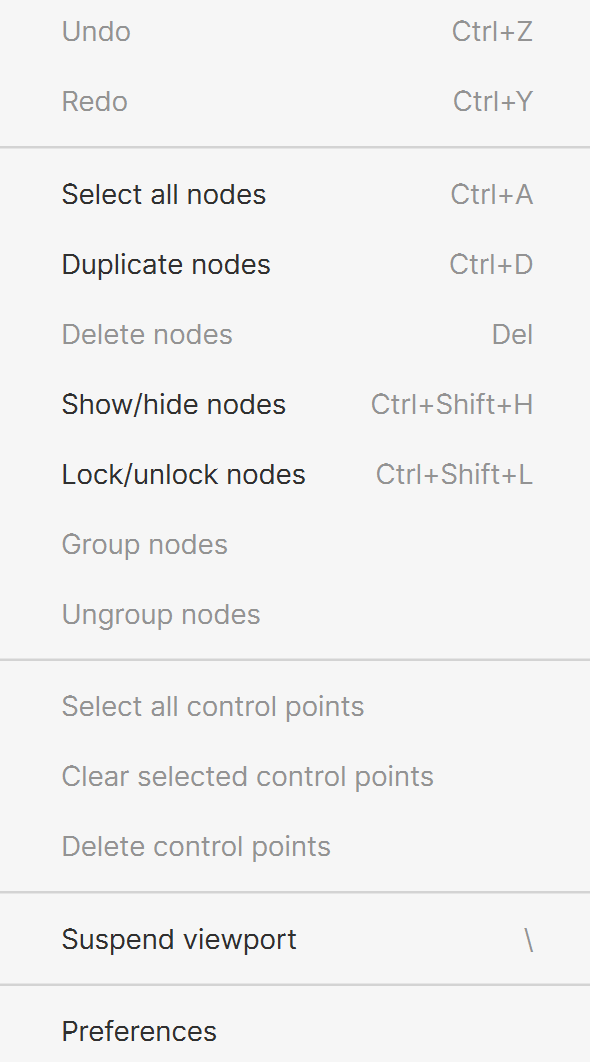

Menu options
Undo reverses your last action. You can undo more than one action. Shortcut: Ctrl+Z
Redo reverses your last Undo. You can redo more than one undone action. Shortcut: Ctrl+Y
Select all nodes selects all objects in the project. Shortcut: Ctrl+A
Duplicate nodes duplicates the selected objects. Shortcut: Ctrl+D
Delete nodes deletes the selected objects. Shortcut: Del
Show/hide nodes shows or hides the selected objects. Shortcut: Ctrl+Shift+H
Lock/unlock nodes disables or enables changes to the selected nodes' position, scale and rotation. Shortcut: Ctrl+Shift+L
Group nodes groups the selected objects.
Ungroup nodes ungroups the selected objects.
Select all control points selects all control points on the path you are editing.
Clear selected control points deselects all control points on the path you are editing.
Delete control points deletes the selected control points on the path you are editing.
Suspend viewport stops rendering and freezes the viewport so you cannot make changes. The option then changes to Resume Viewport. Shortcut: \
Preferences opens the Preferences window. Use it to manage global Envision settings, including zoom and movement speed, display resolution and pop-up behaviour.

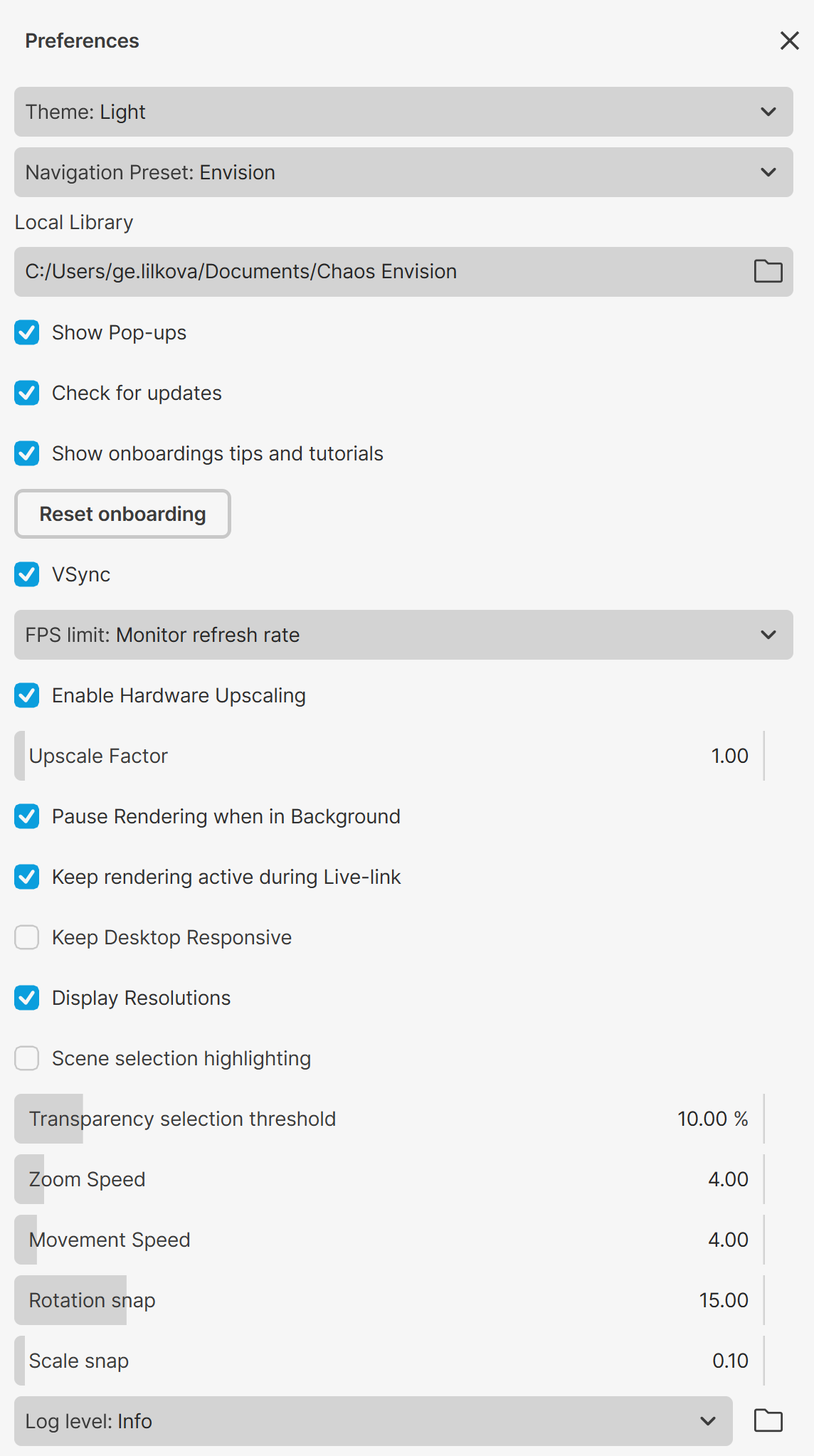

Preferences
Theme sets the colour theme for the Envision interface. Choose Dark or Light.
Navigation Preset sets the navigation controls in Envision. Choose Envision control combinations or controls that work as they do in Chaos Enscape. See the Control and Input page for details about Enscape controls.
Local Library sets the storage path for files you can reuse in other projects, such as Scatter presets.
Show Pop-ups enables notification pop-ups when you take actions in Envision.
Check for updates automatically checks for updates in the background and notifies you when an update is available. To check manually, go to Help menu > Check for updates.
Show onboarding tips and tutorials displays tips and tutorials when you start Envision.
Reset onboarding resets all onboarding progress and restores tips and tutorials throughout the application.
VSync turns vertical synchronisation on or off. When enabled, it synchronises the viewport refresh rate with the display refresh rate. This prevents screen tearing but slightly reduces performance.
FPS limit offers these settings: Monitor refresh rate, 15, 24, 30, 60, 90, 120.
Enable Hardware Upscaling turns hardware image upscaling on or off. Upscaling improves performance but reduces image quality. When disabled, Envision renders the image at full resolution without scaling.
Upscale Factor sets the resolution at which Envision renders the image before upscaling. Higher values reduce image quality. A value of 1.0 renders the image at 50% of its original width and 50% of its original height, then upscales it. A value of 2 renders the image at 25% of its width and height.
Pause Rendering when in Background pauses rendering when another window is in focus.
Keep rendering active during Live-link lets Envision continue rendering while the Live Link is active. You must also enable Pause Rendering when in Background for this option to work.
Keep Desktop Responsive reduces the performance impact on other applications while Envision renders.
Display Resolutions controls whether the viewport shows the current rendering resolution.
Scene selection highlighting shows or hides the outline around selected objects. Shortcut: H
Transparency selection threshold sets the transparency value above which objects cannot be selected, even when you click them. This applies to all types of transparency, including glass and cutouts.
Zoom Speed sets how fast you zoom in the viewport.
Movement Speed sets how fast you move through the viewport.
Box Selection Mode sets how the selection box selects objects.
Intersect selects any object that intersects the selection box.
Contain selects only objects fully inside the selection box.
Rotation snap enables rotation snapping along the X, Y, and Z axes at the specified degree increment.
Scale snap enables scale snapping along the X, Y, and Z axes at the specified increment.
Log level sets the level of detail in the log. Choose from Trace, Debug, Info, Warning, Error, and Fatal.
