Link Views to Setting Presets

This page provides information on linking Views to Settings Presets in Enscape.

Overview

Any View created and saved in Enscape can be linked to a Settings Preset. This feature enables a quick rendering recreation on demand and easily builds presentations for project phasing.

Preparation Steps

1. Create a Settings Preset or use an already created one

For more information, see the Settings Presets page.

1. Create a View or use an already created one

For more information, see the Create Views page.

Link your View

Go to the View Management menu and find the View that will be used for linking.

Click the Edit icon and examine the options.

Linked Visual Preset drop-down opens the list of created Presets.

Choose the desired one and click Save.

The Linked View is now listed with the chain symbol to indicate that a link exists.

Link View to a Preset

Unlink a View

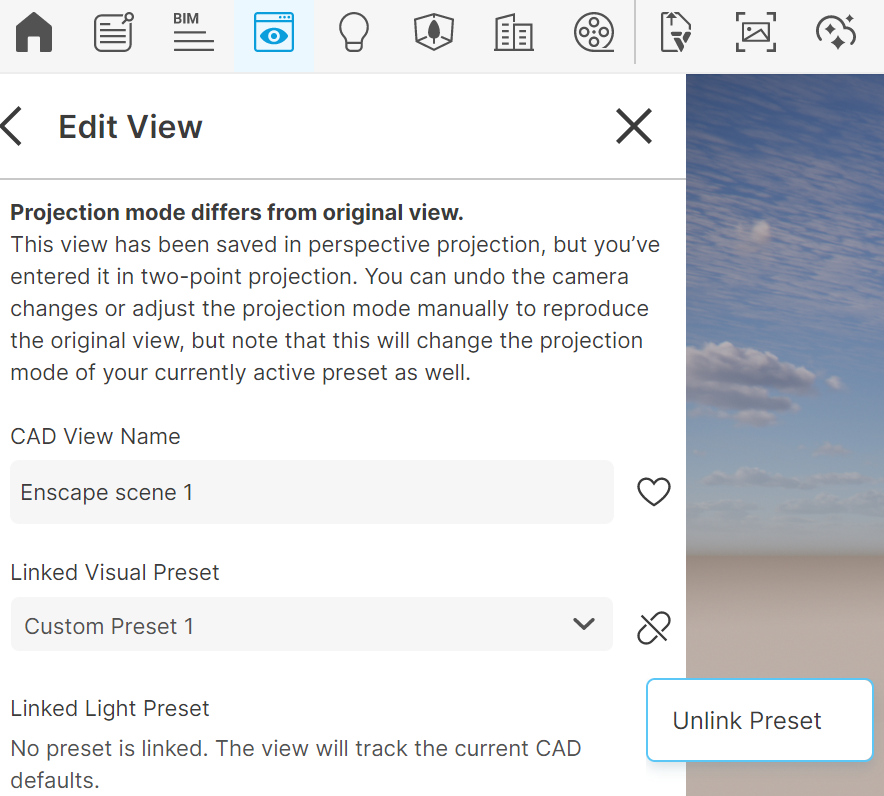

To unlink a Settings Preset, use the small chain symbol next to the Linked Visual Preset dropdown menu in Edit mode:

Unlink Preset

Render a Linked View

To render a View that contains a link to a Settings Preset, use the following methods:

• Screenshot button for a single image

For more information, see the Render an Image page.

• Batch Rendering for a series of images in a row

For more information, see the Batch Rendering page.
