Select Projection Type

This page provides information about the Camera Projection modes in Enscape.

Overview

Enscape offers three projection modes to choose from:

• Perspective
• Two-Point
• Orthographic

The Projection options only take effect when Synchronize Views is disabled.

When Synchronize Views is enabled, the Projection is always synchronized from the CAD application and automatically locked in Enscape as long as Synchronize Views is enabled.

The Projection Icon is disabled when Synchronize Views is activated

Disabling Synchronize Views unlocks the Projection options again and restores them to the previously set Projection.

Select a Projection Mode

Projection modes are shown directly in the Enscape UI toolbar and are available via a drop-down menu.

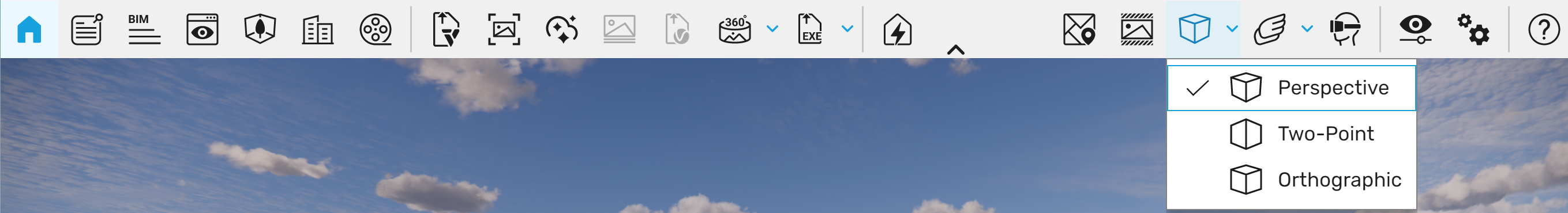

Projection mode button and menu in the Enscape User Interface

Another place to see and change the Projection mode is the Visual Settings menu.

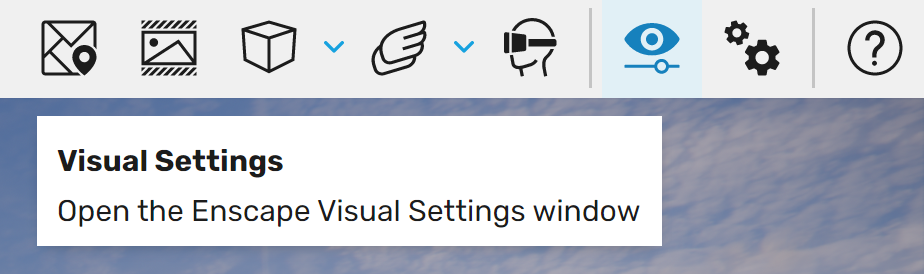

Visual Settings toolbar icon

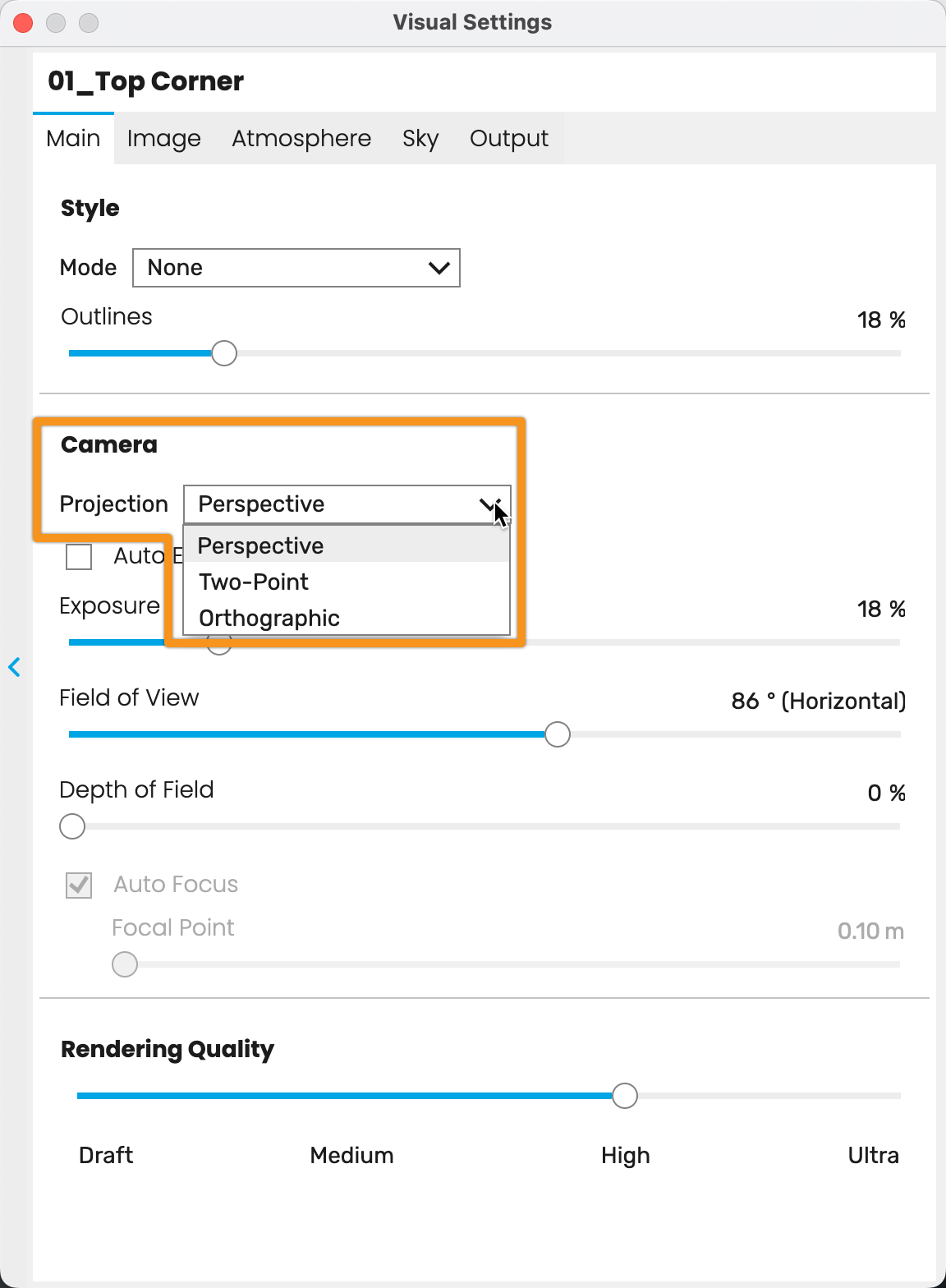

There, the Camera Projection is specified per Preset. For more information, see the Settings Preset page.

Perspective Projection

Click the symbol to reveal the other two options for Projection.

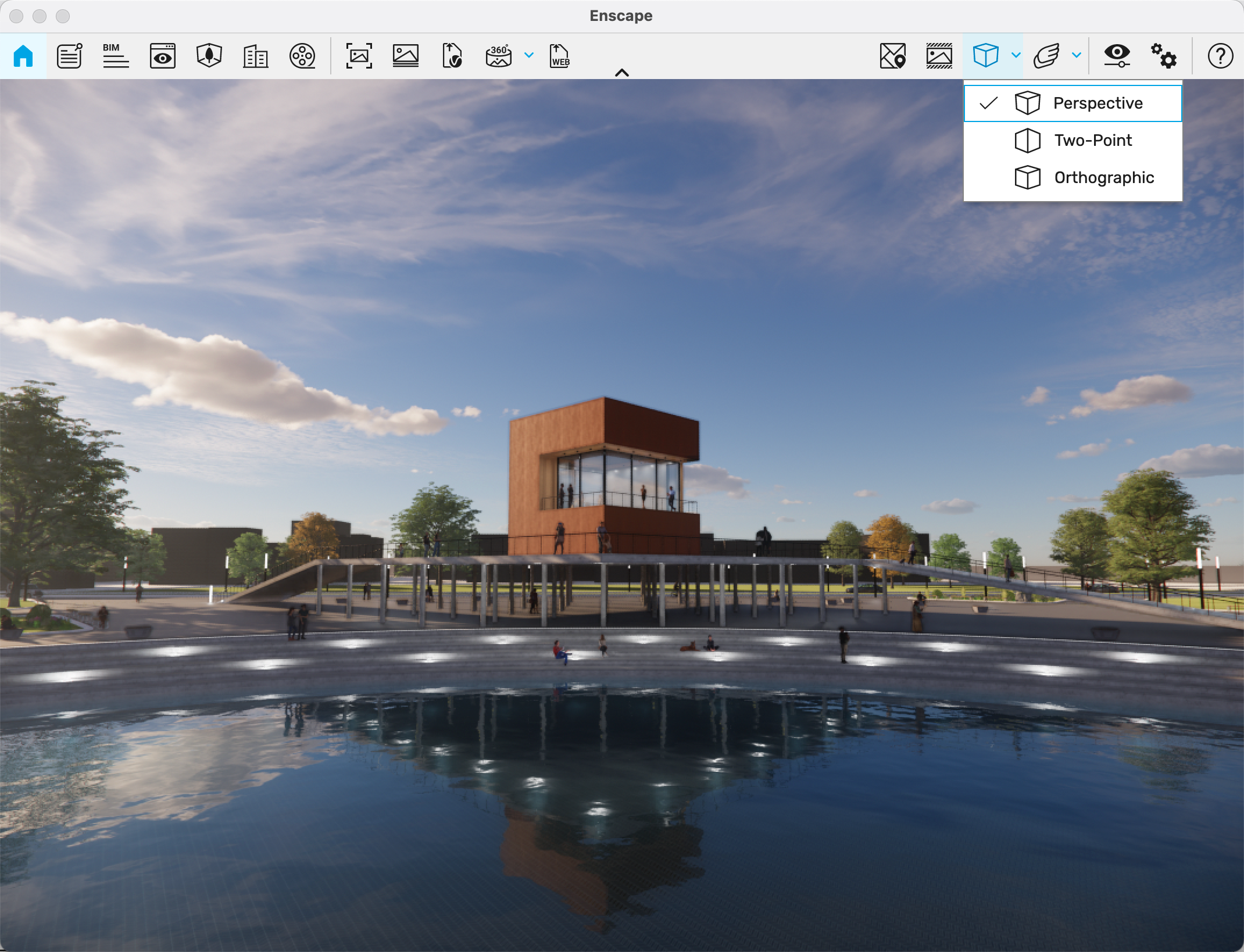

Enscape in Perspective Projection mode

Two-Point Projection

This is an example for Two-Point projection.

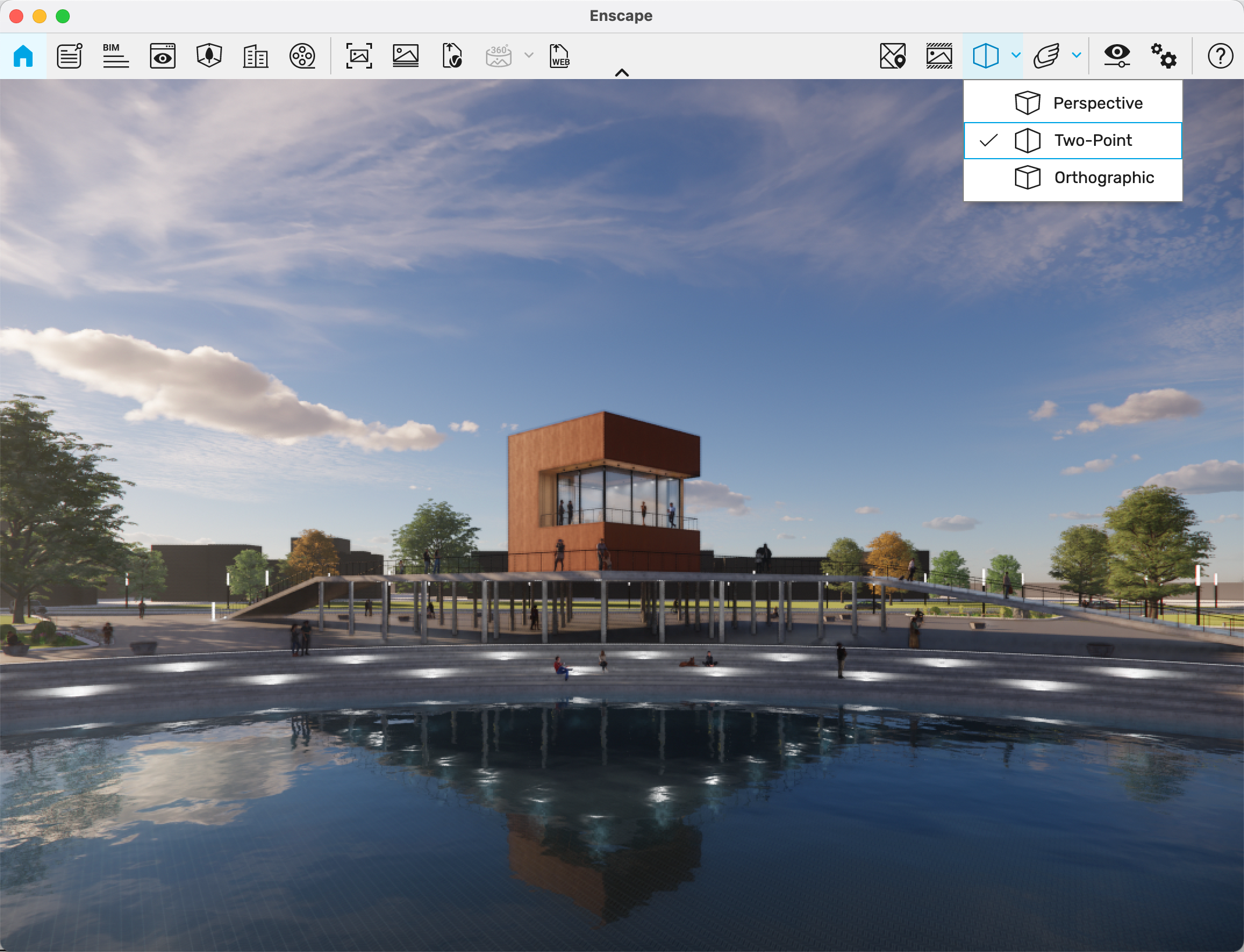

Two Point Projection Mode.

Orthographic Projection

This is an example for an Orthographic projection.

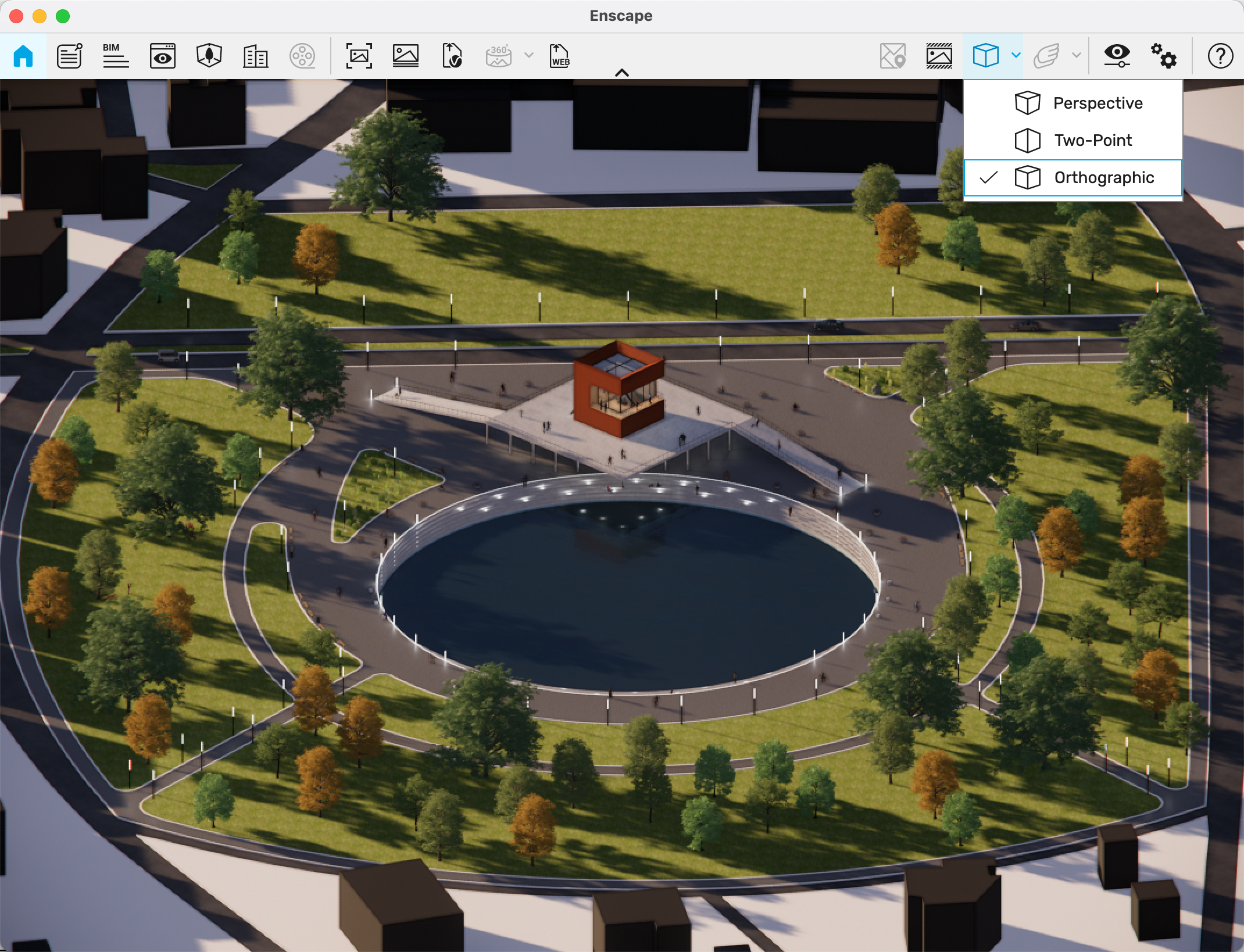

Orthographic Projection Mode

Some Enscape Toolbar buttons are disabled when in Orthographic Projection mode
