Depth of Field

The camera Depth of Field animation animates your camera’s focus point. Before you can add this type of animation to a camera, you need to enable Depth of Field under the camera’s settings.

Last updated 3 August 2026

The camera Depth of Field animation animates your camera’s focus point. Before you can add this type of animation to a camera, you need to enable Depth of Field under the camera’s settings.

Properties

Start/End Focus distance
Set the distance from the camera to where the image is the sharpest.
The focus point picker Select icon enables you to pick a part to focus on.

Start/End F-stop
Adjusts the virtual aperture of the camera. This determines the extent of the area that is “in focus”.

Dof animation example

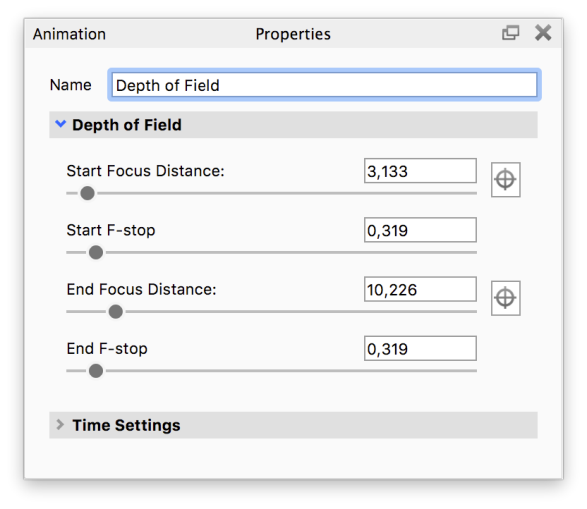

Camera dof
