Use the Render Options window in KeyShot to set Render Mode, CPU Usage and Render Quality. These settings apply to Still Image, Animation and KeyShotXR output.

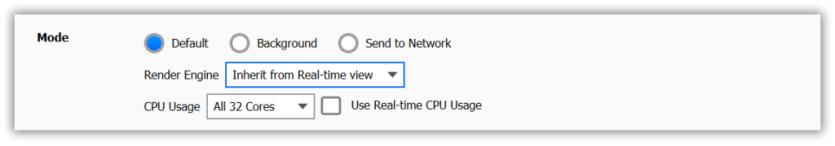

Mode

Default
Use Default to render after adjusting your output settings. In KeyShot Studio Pro, you can also send the render to the render queue.
Background (PRO)
Use Background to render in the background while you work. The Real-time View pauses by default when the render starts. To resume it and continue working, select Render and deselect Pause Real-time Render.
Send to Network
Use Send to Network to send your render job to the Render Queue. The Render Queue must be installed and running before you can send a job for network rendering. See the KeyShot Network Rendering Manual for details.
CPU/GPU Usage
Your Render Engine selection determines whether you can control CPU or GPU usage. You can limit how many CPU cores or which GPUs the render job uses.
Quality
KeyShot Studio has three render quality options.

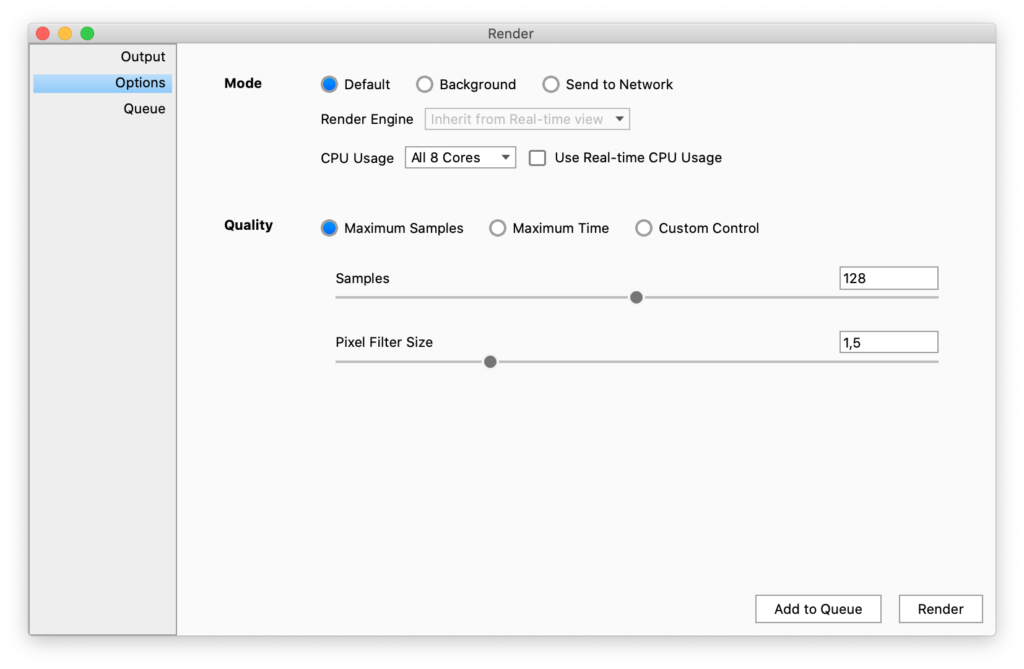

Maximum Samples

Maximum Samples sets how many times KeyShot calculates and refines an image or animation frame. Each additional sample reduces noise and grain. It uses the same rendering technique as the Real-time View and Maximum Time. Custom Control uses a different technique. |
Samples
This sets how many times KeyShot calculates each pixel to improve accuracy. Too few samples leave excessive noise. More samples reduce noise, but setting the value too high increases render time without a noticeable improvement in quality.

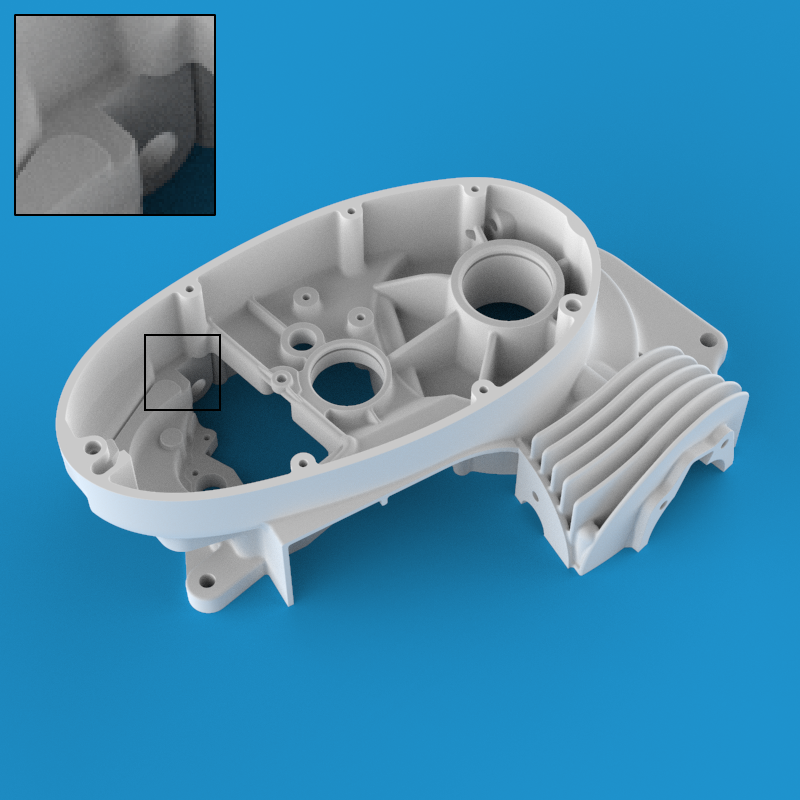

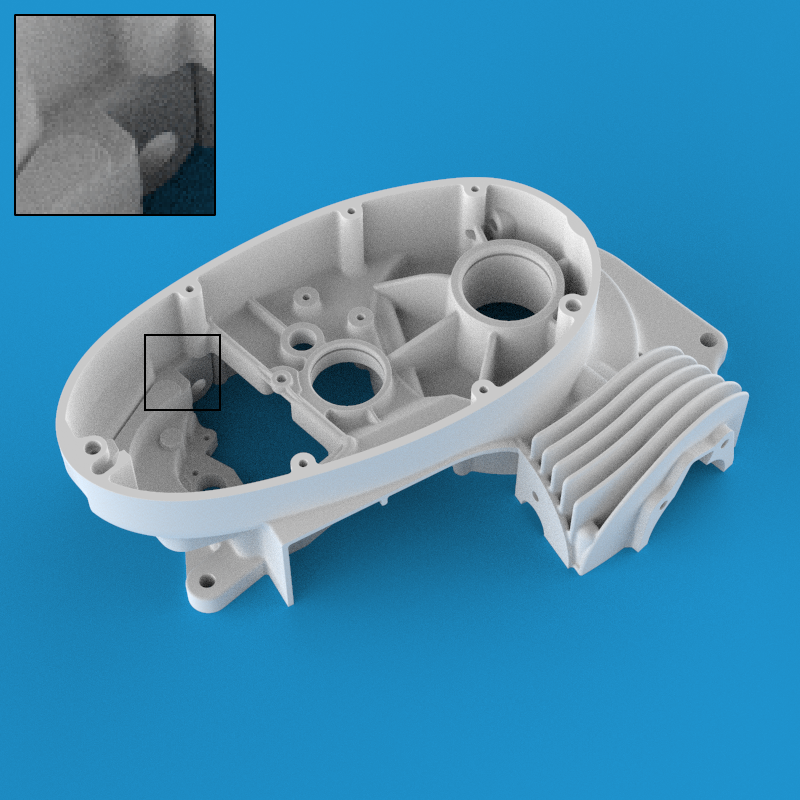

Maximum Samples = 32 | Maximum Samples = 128 | Maximum Samples = 512 |
Samples Per Frame
Maximum Samples changes to Samples Per Frame when you select the Animation tab under Output. This option renders each frame at the same quality. It prevents changes or flickering in shadows and material noise patterns during playback.
Sample-based output is usually better for animations than time-based output. As detail and complexity change, some frames need much longer to reach the same quality. Time-based output leaves more noise in complex frames.
Pixel Filter Size
This sets the blur applied to the image, measured in pixels. It softens the overly sharp look of computer-generated images. Higher values add blur, reduce sharpness and help prevent aliasing without increasing render time. Leave it at the default of 1.5 for most renders. Higher values can make low resolution images too blurry, but can suit high resolution renders. A value of 1 disables pixel blurring. The maximum blur is 3 pixels.

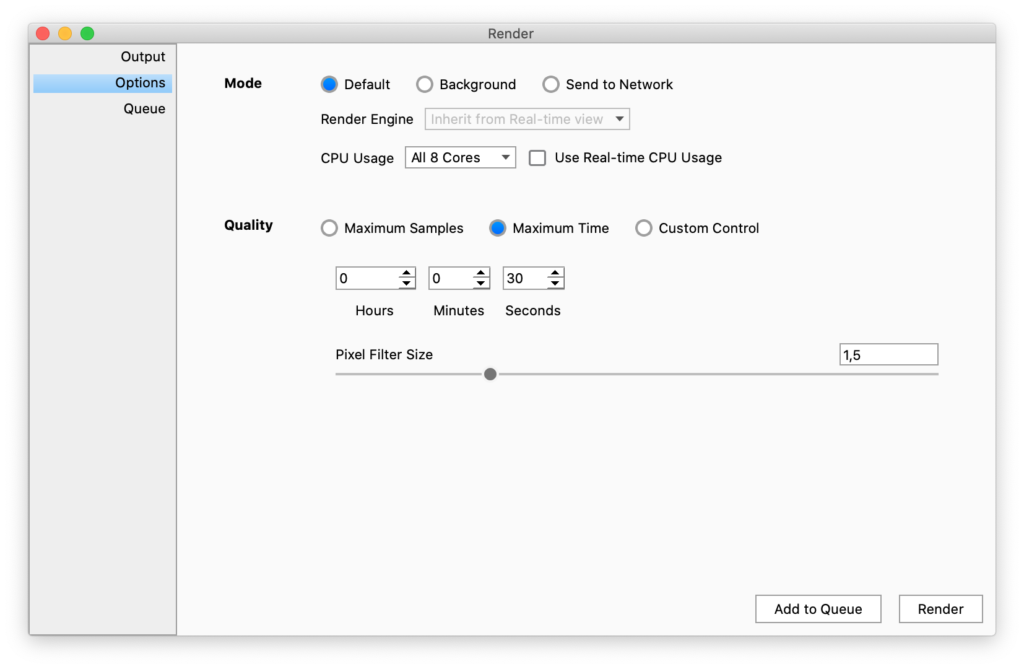

Maximum Time

Maximum Time refines the render for the time you set. It uses the same rendering technique as the Real-time View and Maximum Samples. Custom Control uses a different technique. For an animation, you can set a maximum render time for each frame or a total render time for the whole animation. |

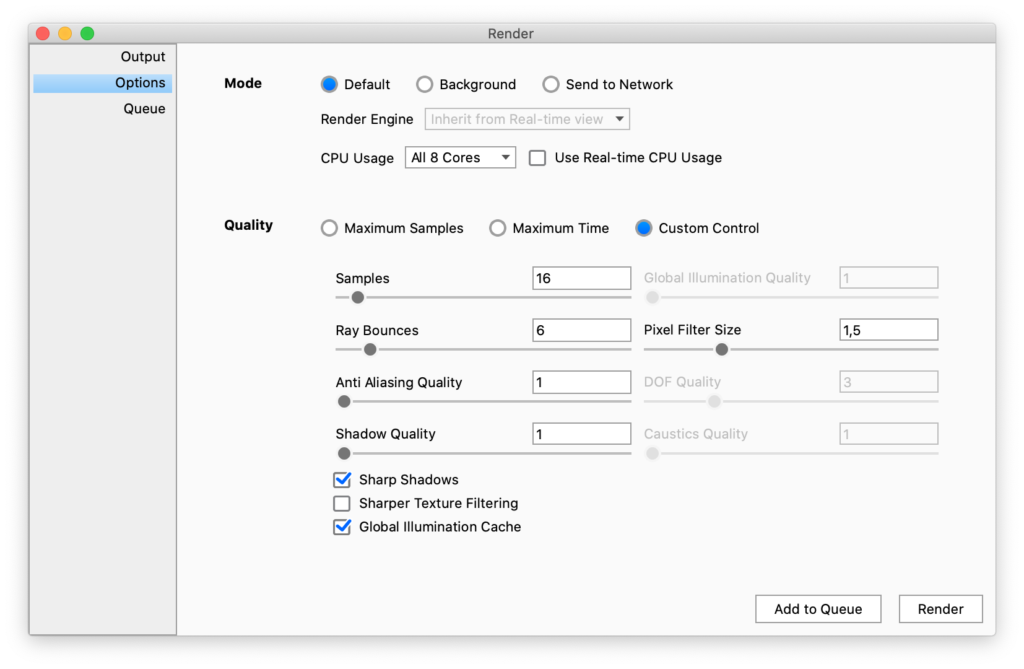

Custom Control

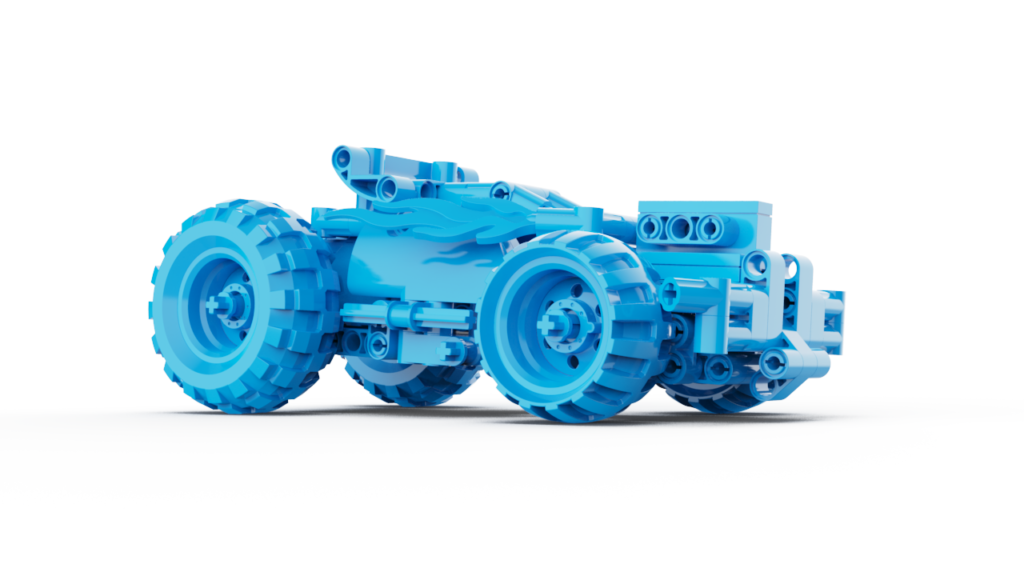

Custom Control gives you access to all quality settings in KeyShot Studio. It usually produces smoother results in areas with heavy noise or shadows. The example below uses Custom Control to render a blue plastic material. Custom Control can efficiently produce images without noise when scenes use diffuse materials such as plastics. |

Samples
This sets how many rays KeyShot sends per pixel into the environment to calculate the pixel's final shade. For best results, adjust samples for each material and use a value between 8 and 16 in the render settings.
See roughness and glossy samples for details on samples and how to set them for each material.
Ray Bounces
This sets how many times KeyShot calculates light rays as they bounce around the scene. The Render Dialog inherits the value from the Lighting tab. Changes in the Render Dialog do not carry back to the Lighting tab. You can adjust ray bounces for a specific render without changing the general setting.
See Custom Lighting Presets for more about Ray Bounces.
Anti Aliasing Quality
Anti aliasing smooths the jagged edges that square pixels can create. The default value of 1 is enough for most renders.
Increasing anti aliasing quality can reduce artefacts when you render with alpha (transparency) and objects have a similar colour to the background. The example below shows this effect.

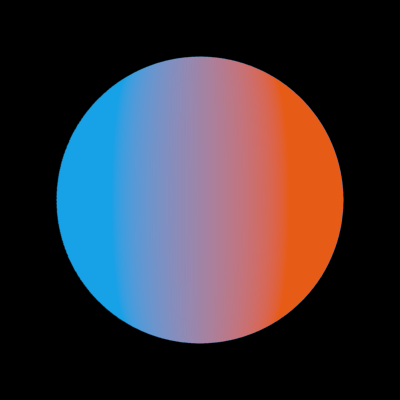

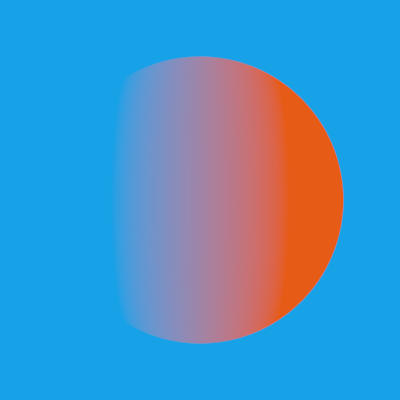

Still Image render of a sphere with a Flat material and a Color Gradient texture. The texture colour matches the background on one side. | Transparent render shown on a solid black background with Anti Aliasing quality set to 1 | Transparent render shown on a solid black background with Anti Aliasing quality set to 5 |
At an Anti Aliasing value of 1, the blue side of the sphere shows artefacts. At an Anti Aliasing quality of 5, these artefacts disappear.
Shadow Quality
This controls the quality of ground and object shadows. Increasing Shadow Quality greatly increases render time. It has the most effect on bright diffuse materials, such as white plastics.


Shadow Quality = 1 | Shadow Quality = 3 |
Global Illumination Quality
This controls the quality of indirect light. Increasing it can greatly increase render time. You rarely need a value above the default of 1. The setting is greyed out when Global Illumination is off. Turn Global Illumination on or off in the Lighting tab of the Project panel.

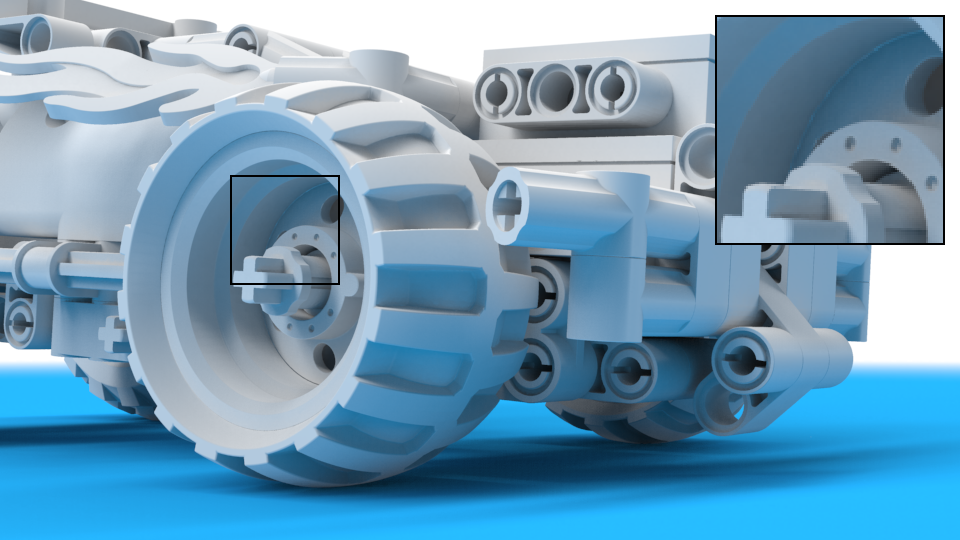

Global Illumination Quality = 1 | Global Illumination Quality = 2 | Global Illumination Quality = 4 |
Pixel Filter Size
This sets the blur applied to the image, measured in pixels. It softens the overly sharp look of computer-generated images. Higher values add blur, reduce sharpness and help prevent aliasing without increasing render time. Leave it at the default of 1.5 for most renders. Higher values can make low resolution images too blurry, but can suit high resolution renders. A value of 1 disables pixel blurring. The maximum blur is 3 pixels.

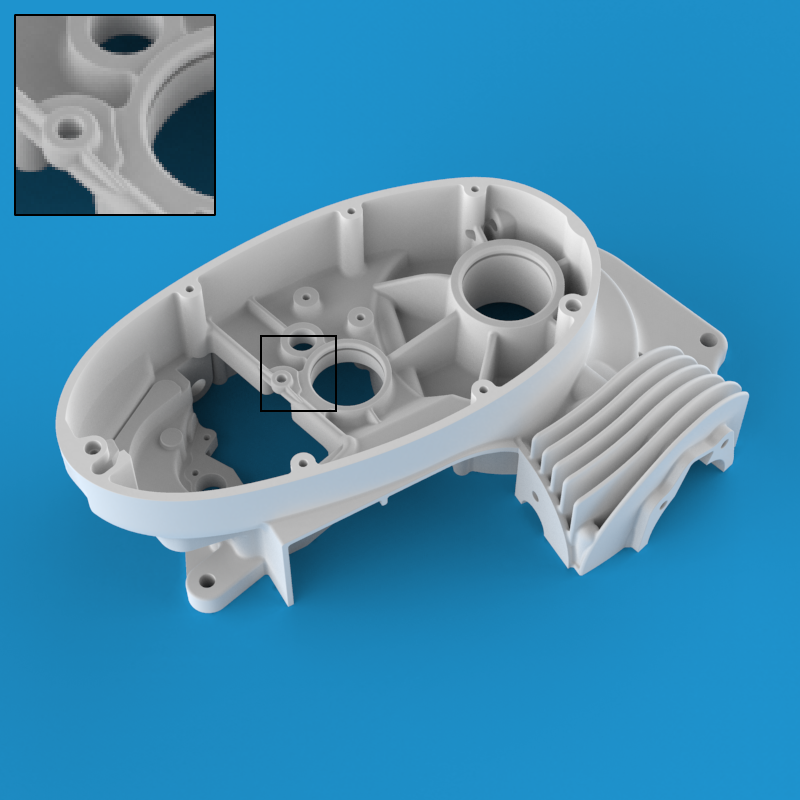

Pixel Filter Size = 1 | Pixel Filter Size = 1.5 | Pixel Filter Size = 3 |

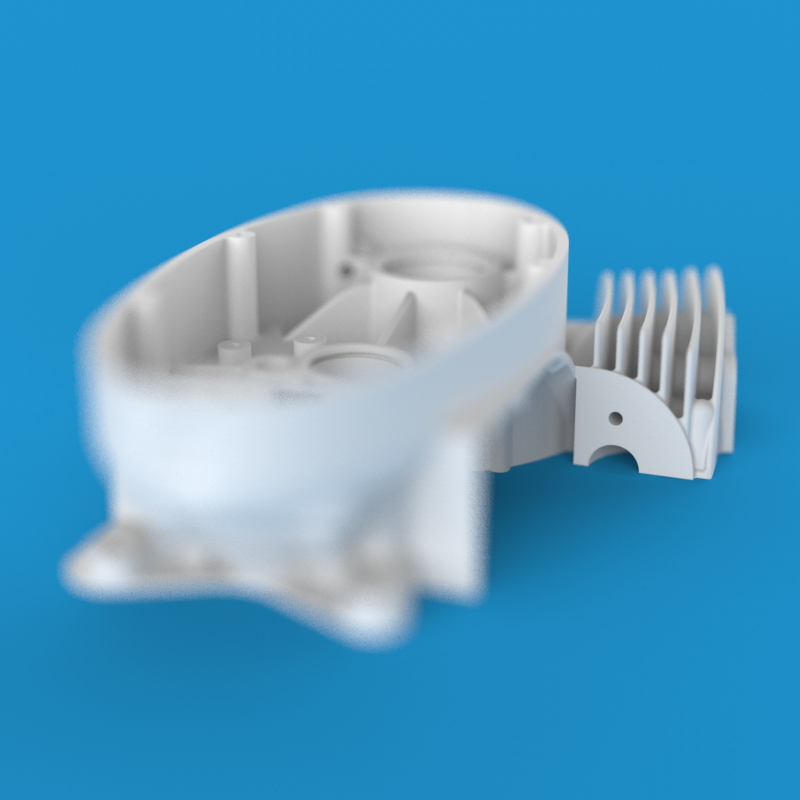

DOF Quality (Depth of Field)
This controls depth of field quality when you enable it in the camera tab. Increasing the value affects render time. For production quality, use a value between 3 and 5. The setting is greyed out when Depth of Field is off. See the section on cameras for more about depth of field.


Caustics Quality
Increasing this value improves caustics samples and quality. The setting is greyed out when caustics are off. You can enable caustics in the Lighting tab of the Project Panel. The maximum value is 50. Higher values use more memory and can need a large amount of system memory. See Refractive Index for more about caustics.

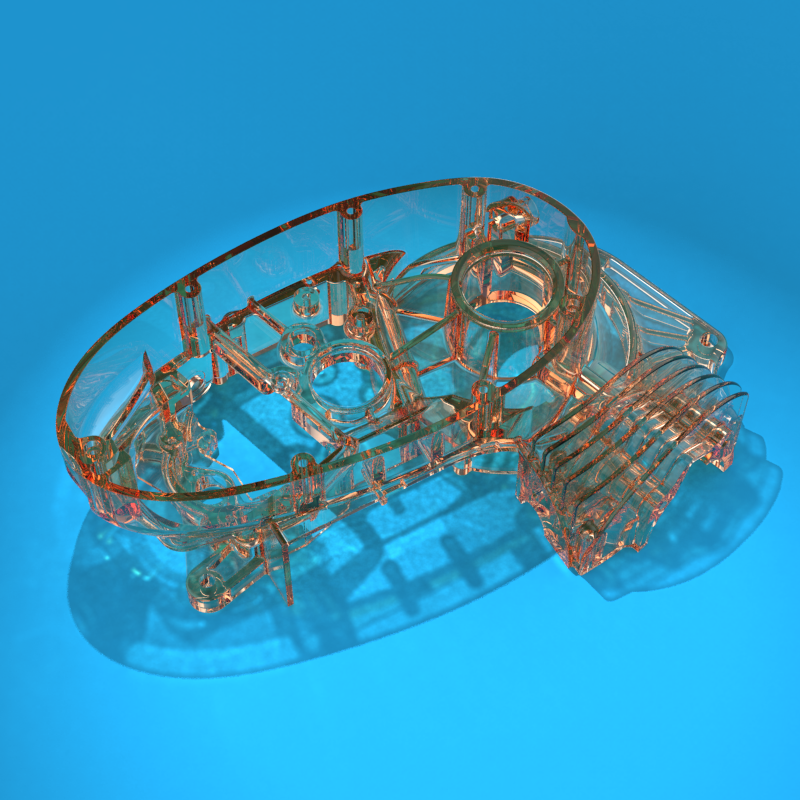

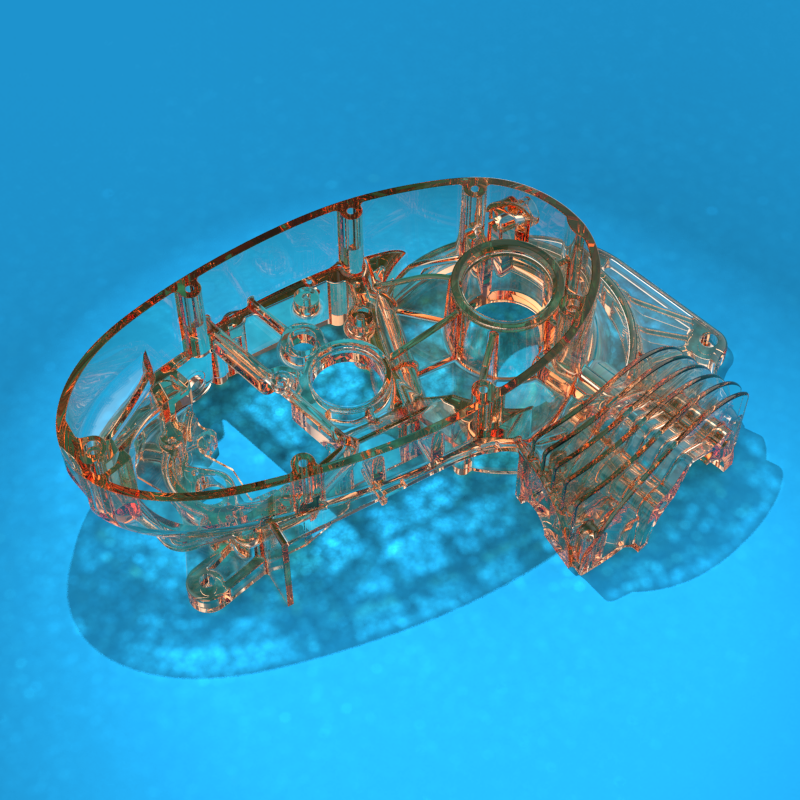

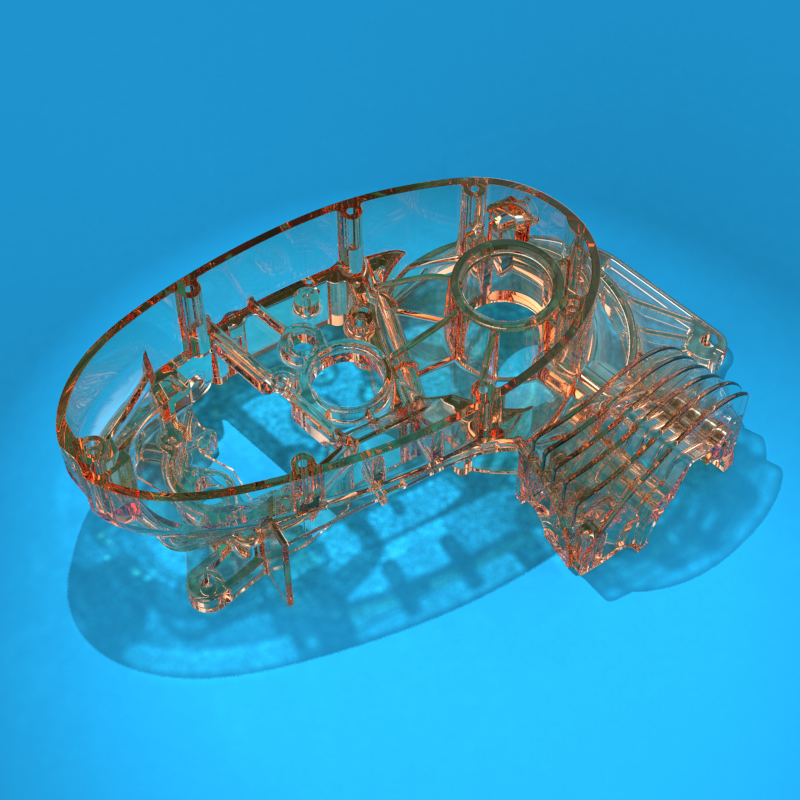

The examples below show how increasing Caustics quality affects a scene with a Solid Glass material lit by a Spotlight.



Caustics Quality = 1 | Caustics Quality = 10 | Caustics Quality = 25 |

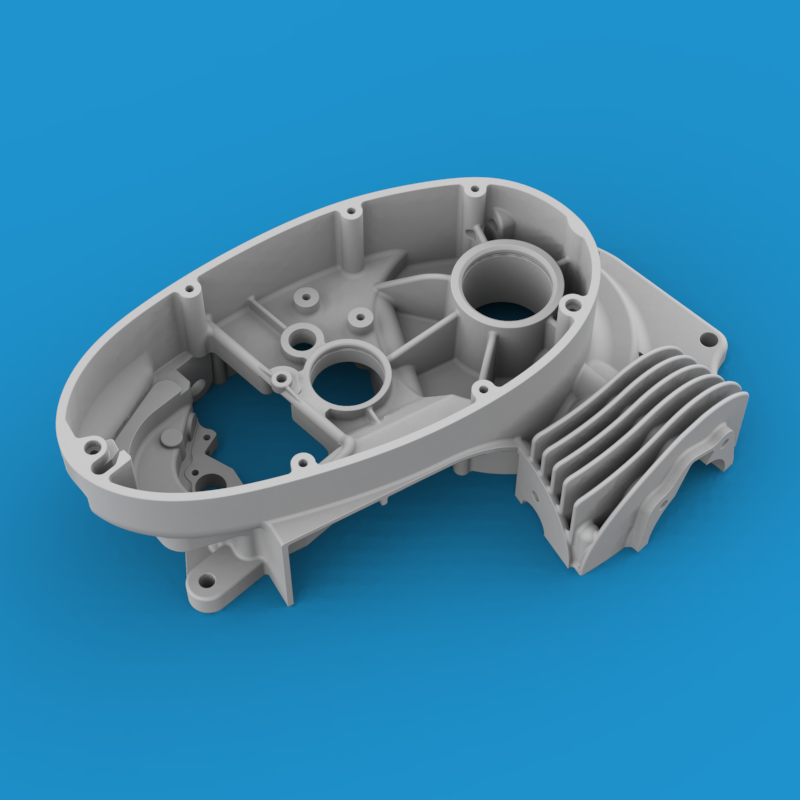

Sharp Shadows
This allows sharp shadows across 3D geometry when the lighting would create them. It is enabled by default for greater accuracy. Leave it on for most renders.


Sharper Texture Filtering
This helps preserve texture detail at grazing angles. For example, when you view a wooden table at eye level, the grain appears compressed and can lose detail. This setting reduces that loss. It can increase render time, so enable it only when you use textures at grazing angles.
Global Illumination Cache
Disabling Global Illumination Cache replaces dirty shadows and black spots with noise. These artefacts can appear when a scene has transparent materials with diffuse surfaces behind them. Increase Global Illumination Quality to reduce the noise. Increasing Samples also helps.

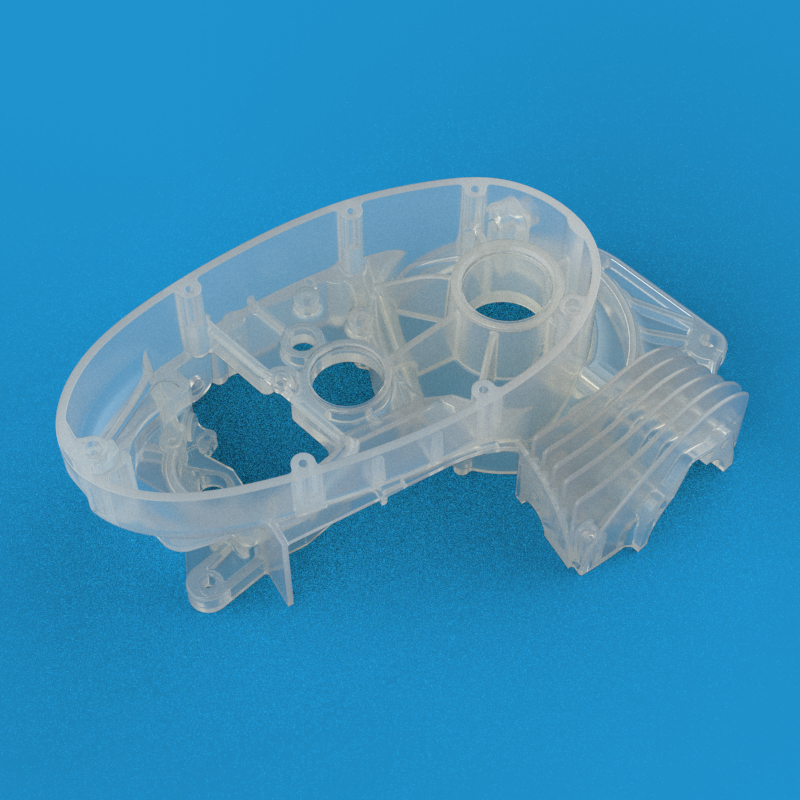

The examples below show how turning Global Illumination Cache on or off affects a scene with a Cloudy Plastic material.
